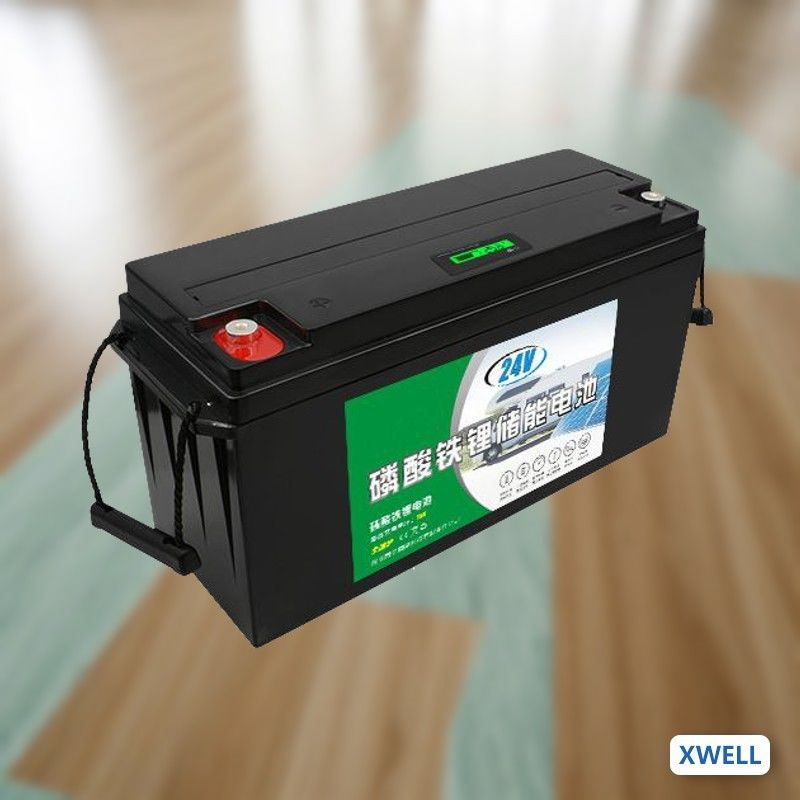

24v 50ah Lithium Iron Phosphate Battery
Introduction:
24V 50Ah lithium battery is a rechargeable lithium battery pack widely used in solar energy storage systems, wind energy storage systems, electric vehicles, electric scooters, electric bicycles, medical equipment, communication devices, and more. It is equipped with M8 copper screw terminals for easy connection to other wires.
The 24V 50Ah battery is also widely used in kayaks, trolling motors and other fishing applications. Its IP65 waterproof standard allows you not to worry about the battery being eroded or damaged by rain. It provides you with super long range as well as strong power output for your fishing life. The battery comes standard with 0.5C battery cells. Can be customised with 1C, 3C, 6C and other higher power output according to your needs.
Lithium Battery Replacement Lead-Acid Specification
| Model |
25.6V50Ah |
25.6V100Ah |
25.6V120Ah |
| Nominal Voltage |
25.6V |
| Nominal Capacity @25C |
50AH |
100AH |
120AH |
| Nominal Energy @25°C |
1280WH |
2560WH |
3072WH |
| Battery Cell Type |
Prismatic 50Ah |
Prismatic 100Ah |
Prismatic 120Ah |
| Configuration(xSxP) |
8S1P |
8S2P |
8S2P |
| Max.Continous Charge Current @25°C |
7A |
12A |
50A |
| Max. Continous Discharge Current @25°C |
7A |
12A |
50A |
| DC Resistance |
≤10mΩ |
| Full Charged Voltage |
29.2V |
| Discharge Cut-off Voltage |
20V |
| Operate Temperature Range |
Charge: 0°C~55°C; Discharge: -20°C~60°C; Storage: -20°C~45°C |
| Dimension (mm) |
326x171x215mm |
522x240x218mm |
522x240x218mm |
| Weight(KG) |
12.5KG |
25KG |
28KG |
| Teminal Type |
F1 terminal |
Screw teminal |
| Cover Sealing type |
Screw / gel sealing optional |
| Waterproof |
IP65 |
| Cyde life |
100% DOD Cycles @ 25xC 1C/1C: >2000 times80% DOD Cycles @ 25C 1C/1C: >6000 times50% DoD Cycles @ 25C, 1C/1C: >5000 times |
| LCD Screen Display |
Optional(Show voltage V,Power %) |
| Bluetooth |
Optional (Bluetooth with mobile APP) |
| Series and Parallels Function |
Available to make in series and parallels to get 24V, 36V, 48V |
| Heating Function |
Optional, Suitable for cold area application |
Why choose us?
Xwell is a national high-tech company focusing on lithium-ion battery packaging, design, production and sales.
The company was established in June 2017 with a registered capital of 5 million yuan.
The company has passed ISO 9001:2015 quality management system certification ISO14001:2015 environmental management system certification, QC080000 hazardous substance management system certification. The products have passed CE, CQC, RoHS, UN38.3, BIS and other certifications.
We adhere to the continuous independent innovation ability, excellent development and design ability and reasonable business positioning to provide customers with solutions to meet their different product needs. The company's business scope covers household energy storage, outdoor energy storage power supply, commercial energy storage system, photovoltaic energy storage system, security, medical treatment, precision instruments, intelligent travel, artificial intelligence, electric tools, unmanned aerial vehicles, ships 3C consumer electronics and other new energy fields.With efficient management.
Relying on efficient management, reasonable price and perfect techni- cal support,we strive to become a leader in the energy storage industry and creat high-quality energy storage products to bring users a better experience.
