All In One Energy Storage System Specification 51.2V100Ah/200Ah LiFePO4 Gt 6000 Cycles
Product description

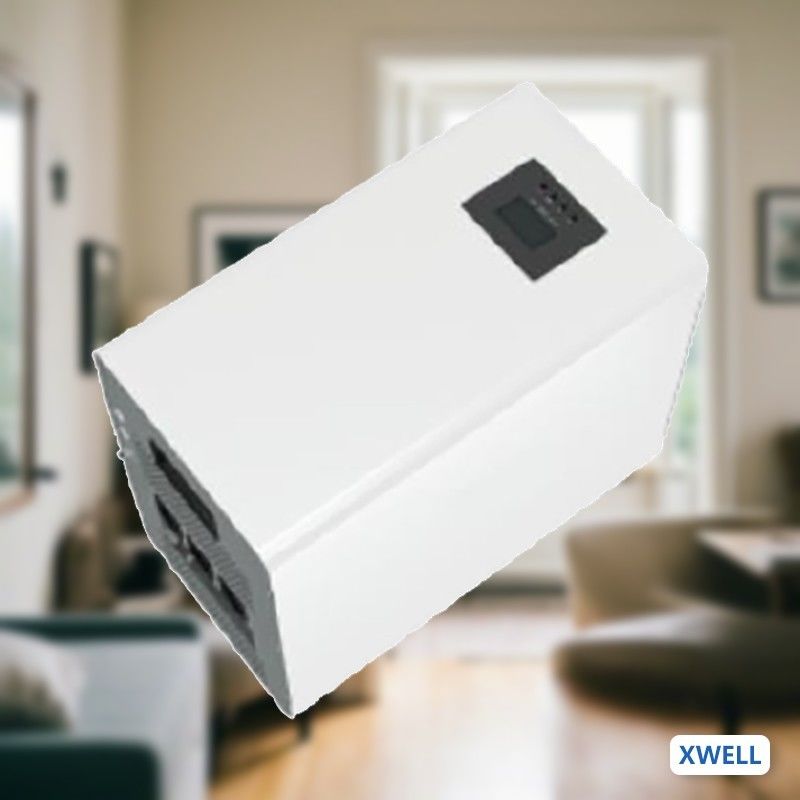

This all-in-one solution features intelligent charging and discharging controls. It can be connected to the mains grid for automatic charging, optimizing the battery's charge level to prolong its lifespan. Additionally, it can be programmed to prioritize certain appliances or circuits during power outages, ensuring that essential devices such as refrigerators, lights, and communication equipment remain operational. With its user-friendly interface, which may include LCD displays and control buttons or even smartphone connectivity, users can easily monitor the battery status, power consumption, and adjust settings according to their needs.
This product is designed to provide a seamless solution for both power conversion and energy storage. It incorporates a high-efficiency inverter that can convert direct current (DC) from the battery into alternating current (AC) with minimal power loss. This allows it to power a wide range of AC appliances and equipment, making it suitable for various applications such as residential use, small businesses, and off-grid power systems.
All In One Energy Storage System Advantages
1. Integrated LED indicator, display the SOC and operating status
2. Balance between cells, balance between racks
3. LCD display the battery system information(customized)
4. Easily for installation and capacity expansion
5. 10 years design life, Stable performance, maintenance-free
All in One Energy Storage System Specification
| Battery Parameters |
| Model |
51.2V100Ah |
51.2V200Ah |
| Nominal voltage |
51.2V |
| Nominal capacity (kwh) |
5KWh |
10KWh |
| Cell type |
LiFePO4 |
| Cycle life |
>6000 Cycles(80%DOD) |
| Charge temperature range |
0~65°C |
| Discharge temperature range |
-20~65°C |
| Maximum continuous charge current |
50A |
| Maximum continuous discharge current |
100A |
| Color |
Black /White |
| Dimension (mm) |
710x300x600 |
710x300x800 |
| Weight |
81Kg |
110Kg |
| Installation method |
Floor type with wheels |
| Inverter Parameters |
| Rated power |
3.2KW |
| Peak power |
5KW |
| Output wave form |
Pure sine wave |
| Input/Output AC voltage |
AC 110V/220V |
| Input/Output AC voltage frequency |
50Hz/60Hz |
All in One Energy Storage System Connection Diagram
Our service
1. OEM&ODM Service
2. Custom print logo
3. Free battery solution
4. Free Shipping cost to China address
5. Support sample order for test
Company Information
Xwell is a leading lithium battery manufacturer in China, which is committed to provide customers with safe and durable battery products for EV power battery, portable energy storage, household energy storage, micro power grid, telecom station power supply, UPS, solar street lights, harvesters, AGV, forklift, electric tricycles, electric wheelchairs, etc. Elite professional experienced technicians and advanced equipments provide customers with high-quality batteries and professional customized battery solutions. Elite has passed ISO 9001 ISO 14001 certification, Elite products have been certified with CE, UN38.3, MSDS, etc.
