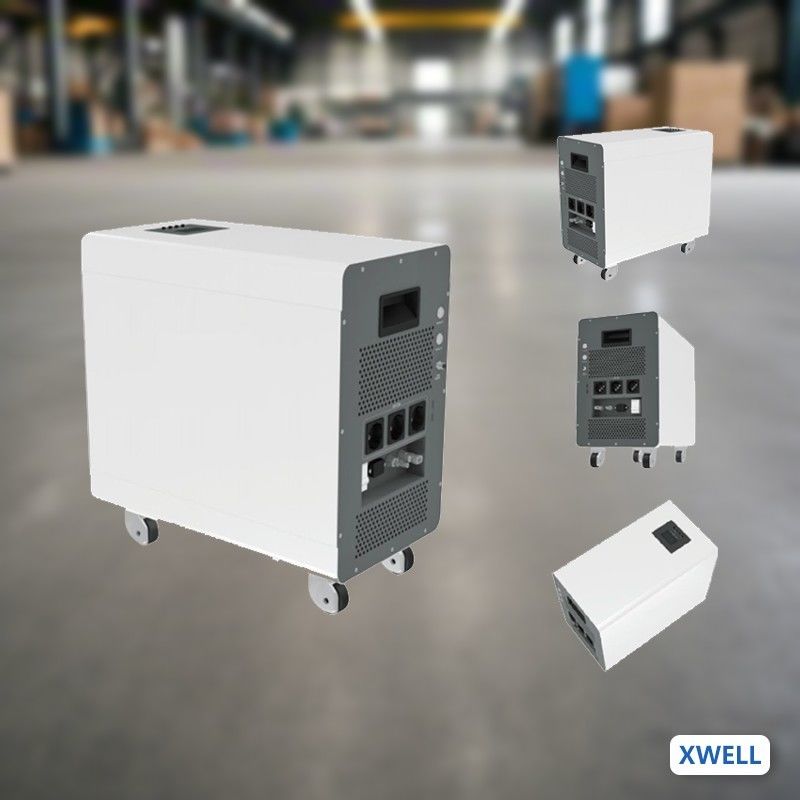

5kWh-200A Hybrid Inverter with Voltage Li-ion Battery Integrated 1000W Full-Featured ESS System
All In One Energy Storage System Description
An All In One Inverter Battery is a cutting-edge power solution designed to meet the diverse energy requirements of both residential and small commercial settings. This integrated device combines the functions of an inverter and a battery into a single, compact unit, providing users with a seamless and efficient power backup and conversion system.
Equipped with advanced power electronics technology, it is capable of converting direct current (DC) stored in the battery into alternating current (AC) to power a wide range of electrical appliances and equipment. The inverter within the unit ensures a stable and clean power output, protecting sensitive electronics from voltage fluctuations and surges. The battery component, often based on high-performance lithium-ion or other reliable chemistries, offers substantial energy storage capacity, enabling it to supply power during grid outages or periods of peak demand.
Designed for convenience and efficiency, it offers a reliable source of power for a variety of applications. Whether for home use during power outages or for off-grid installations, this all-in-one solution simplifies power management.
With its integrated design, it offers seamless integration into your home or business. The system includes a high-capacity battery that stores energy for use when you need it most. Whether it's for backup power during outages or to optimize your energy consumption, this energy storage system has you covered.
All in One Energy Storage System Specification
| Battery Parameters |
| Model |
51.2V100Ah |
51.2V200Ah |
| Nominal voltage |
51.2V |
| Nominal capacity (kwh) |
5KWh |
10KWh |
| Cell type |
LiFePO4 |
| Cycle life |
>6000 Cycles(80%DOD) |
| Charge temperature range |
0~65°C |
| Discharge temperature range |
-20~65°C |
| Maximum continuous charge current |
50A |
| Maximum continuous discharge current |
100A |
| Color |
Black /White |
| Dimension (mm) |
710x300x600 |
710x300x800 |
| Weight |
81Kg |
110Kg |
| Installation method |
Floor type with wheels |
| Inverter Parameters |
| Rated power |
3.2KW |
| Peak power |
5KW |
| Output wave form |
Pure sine wave |
| Input/Output AC voltage |
AC 110V/220V |
| Input/Output AC voltage frequency |
50Hz/60Hz |
All in One Energy Storage System Connection Diagram
FAQ
1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.
2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Same capacity matched
3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.
4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD
5.What's the warranty of your 48V/51.2V battery pack?
5 years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs
6.Do your batteries support series or parallel connection?
Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff
