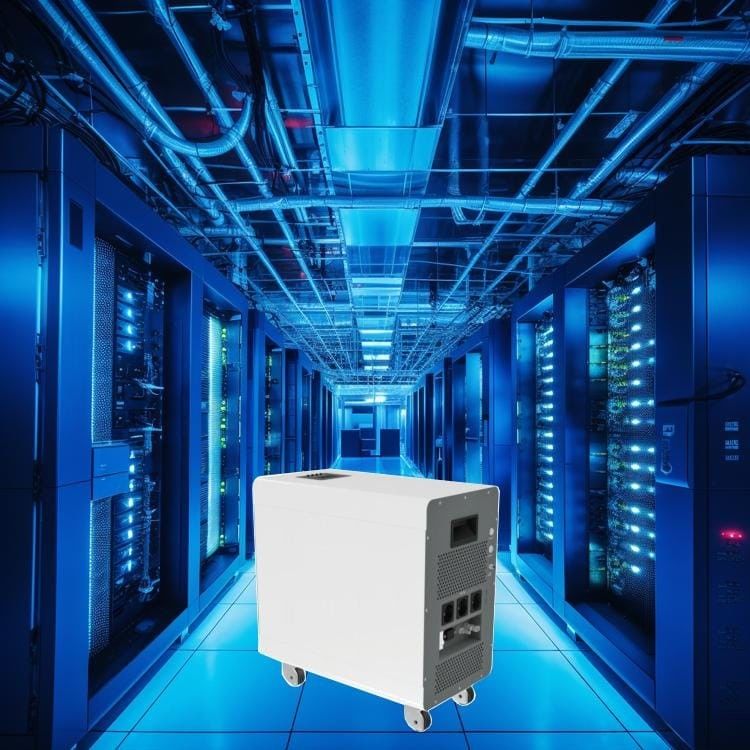

Name: Mounted Stackable Energy Storage Lithium Ion Battery Pack
Brand: XWELL
SKU: XW-5120W-1
Rating: 4.7 (155 reviews)

Home > products > Rackmount Lithium Battery >

Mounted Stackable Energy Storage Lithium Ion Battery Pack

Mounted Lithium Ion Battery Pack

Energy Storage Lithium Ion Battery Pack

Stackable Lithium Ion Battery Pack

Place of Origin:

China

Brand Name:

XWELL

Certification:

UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:

XW-5120W-1

Document:

Product Brochure PDF

Request A Quote

Mounted Stackable Energy Storage Lithium Ion Battery Pack

Product Details

Features:

Stackable

Display Screen:

Yes

Pack Capacity:

50Ah 100Ah 200Ah

Pack Energy:

2.56Kwh 5.12Kwh 10.24Kwh (Optional)

Discharge Current:

50A

Max Charge Current:

50A

Discharge Cut-off Voltage:

42.5V

Display:

LCD Optional

Communication Interface:

RS485, RS232, CAN

Cycle Life:

>6000 Cycles(80%DOD)

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Packaging Details

Carton

Delivery Time

7-10 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5000 pcs per month

RELATED PRODUCTS

86-186-2049-2985

sales@esslithiumbattery.com

86-186-2049-2985

Contact Now

Product Description

Mounted Stackable Energy Storage Lithium Ion Battery Pack

Coverage of application

1. Performs 6000+ cycles;
2. Flexible connection and 4 different installation ways by option (Side stackable, Flat stackable, Rack mounted or Wall mounted);
3. Support max. 30pcs in parallel to increase capacity up to 150kWh;
4. Wide compatible with main brand inverters, BMS with multiple communication protocols;
5. Widely applicable to residential, commercial and industrial energy storage systems;

6. With Bluetooth function, battery real-state can be monitored on Phone Bluetooth App;

Rackmount Lithium Battery Specification

Model	51.2V50Ah	51.2V100Ah	51.2V200Ah
Nominal voltage	51.2V
Nominal capacity (kwh)	2.56	5.12	10.24
Cell type	LiFePO4
Standard charge voltage	54.6V(adjustable)
Max charge current	50A
Discharge cut-off voltage	42.5V(adjustable)
Max discharge current	50A
Display	LCD(Optional)
Communication interface	CAN/RS485/RS232
Cycle life	>6000 Cycles (80%DOD)
Charge temperature range	0~45°C
Discharge temperature range	-20~60°C
Color	Black
Dimension (mm)	442x410x133 3U	442x410x177 4U	550x442x220 5U
Weight	About 35Kg	About 42Kg	About 84Kg
Installation method	Rack Mount

Cell Specification of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack 0

Operation Pannel of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack 1

Size of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack 2

Structure of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack 3

Application of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack 4

What We Offer?

Supply chain solution, strict quality control, real-time response
OEM/ODM Manufacturer, custom sizes and shapes available on request
Suggestion of new design or material, new technology and cost structure
Engineers team at your service
Flexible small orders are acceptable
One-stop supply to eliminating messy links

Mounted Stackable Energy Storage Lithium Ion Battery Pack 5
