Name: Stackable Lithium Battery Pack For Solar Energy Storage System
Brand: XWELL
SKU: XW-5120W-1
Rating: 5 (200 reviews)

Home > products > Rackmount Lithium Battery >

Stackable Lithium Battery Pack For Solar Energy Storage System

Stackable Lithium Battery Pack

Solar Energy Storage Lithium Battery Pack

Place of Origin:

China

Brand Name:

XWELL

Certification:

UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:

XW-5120W-1

Document:

Product Brochure PDF

Request A Quote

Stackable Lithium Battery Pack For Solar Energy Storage System

Product Details

Packaging Details:

Standard Carton Package/Single Package/Wooden Package As You Required

Payment Terms:

Pack Capacity:

50Ah 100Ah 200Ah

Pack Energy:

2.56Kwh 5.12Kwh 10.24Kwh (Optional)

Discharge Current:

50A

Max Charge Current:

50A

Discharge Cut-off Voltage:

42.5V

Display:

LCD Optional

Communication Interface:

RS485, RS232, CAN

Cycle Life:

>6000 Cycles(80%DOD)

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Packaging Details

Carton

Delivery Time

7-10 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5000 pcs per month

RELATED PRODUCTS

86-186-2049-2985

sales@esslithiumbattery.com

86-186-2049-2985

Contact Now

Product Description

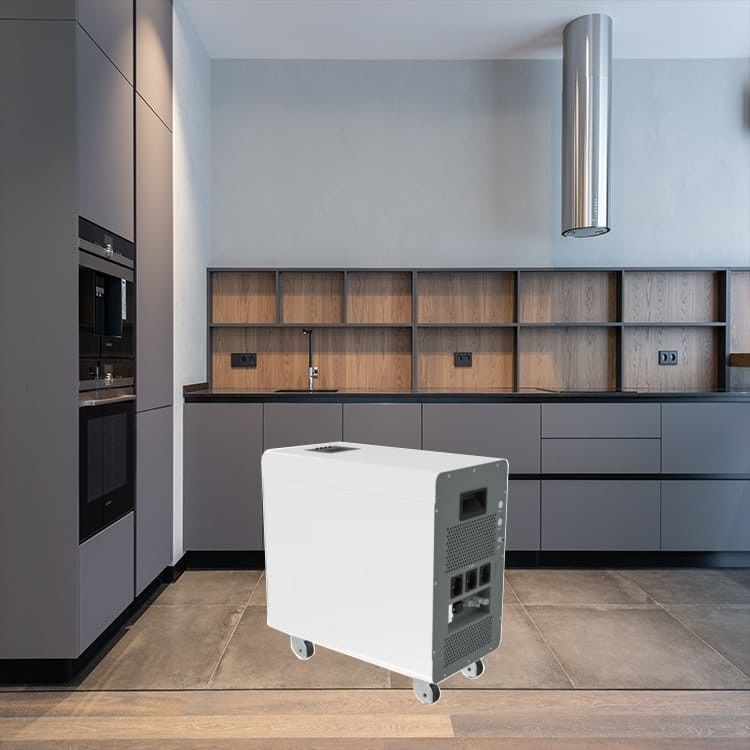

Stackable Lithium Battery Pack For Solar Energy Storage System

LiFePO4 Battery Type: Utilizes LiFePO4 chemistry for enhanced safety, long cycle life, and high energy density.

· Flexible Output Power Range: Offers an output power range of 10-20 kWh to meet specific energy needs.

· System Type: Seamlessly integrates with existing home energy systems for easy installation and compatibility.

· Lightweight Design: Weighing only 80kg, it is easy to handle and install within your home energy setup.

· Advanced Communication Port: Equipped with a CAN communication port for efficient data exchange and coordination.

· IP65 Protection Class: Features IP65 protection against dust and water ingress, suitable for indoor and outdoor use.

· Off-Grid Grid Connection: Designed for off-grid applications to harness and store renewable energy.

· High Nominal Voltage and Capacity: Nominal voltage of 48V and capacity of 200Ah for reliable and stable power supply.

Rackmount Lithium Battery Specification

Model	51.2V50Ah	51.2V100Ah	51.2V200Ah
Nominal voltage	51.2V
Nominal capacity (kwh)	2.56	5.12	10.24
Cell type	LiFePO4
Standard charge voltage	54.6V(adjustable)
Max charge current	50A
Discharge cut-off voltage	42.5V(adjustable)
Max discharge current	50A
Display	LCD(Optional)
Communication interface	CAN/RS485/RS232
Cycle life	>6000 Cycles (80%DOD)
Charge temperature range	0~45°C
Discharge temperature range	-20~60°C
Color	Black
Dimension (mm)	442x410x133 3U	442x410x177 4U	550x442x220 5U
Weight	About 35Kg	About 42Kg	About 84Kg
Installation method	Rack Mount

Cell Specification of Rackmount Lithium Battery

Stackable Lithium Battery Pack For Solar Energy Storage System 0

Operation Pannel of Rackmount Lithium Battery

Stackable Lithium Battery Pack For Solar Energy Storage System 1

Size of Rackmount Lithium Battery

Stackable Lithium Battery Pack For Solar Energy Storage System 2

Structure of Rackmount Lithium Battery

Stackable Lithium Battery Pack For Solar Energy Storage System 3

Application of Rackmount Lithium Battery

Stackable Lithium Battery Pack For Solar Energy Storage System 4

What We Offer?

Supply chain solution, strict quality control, real-time response
OEM/ODM Manufacturer, custom sizes and shapes available on request
Suggestion of new design or material, new technology and cost structure
Engineers team at your service
Flexible small orders are acceptable
One-stop supply to eliminating messy links

Stackable Lithium Battery Pack For Solar Energy Storage System 5
