Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-5120W-1
Document:
Contact Us

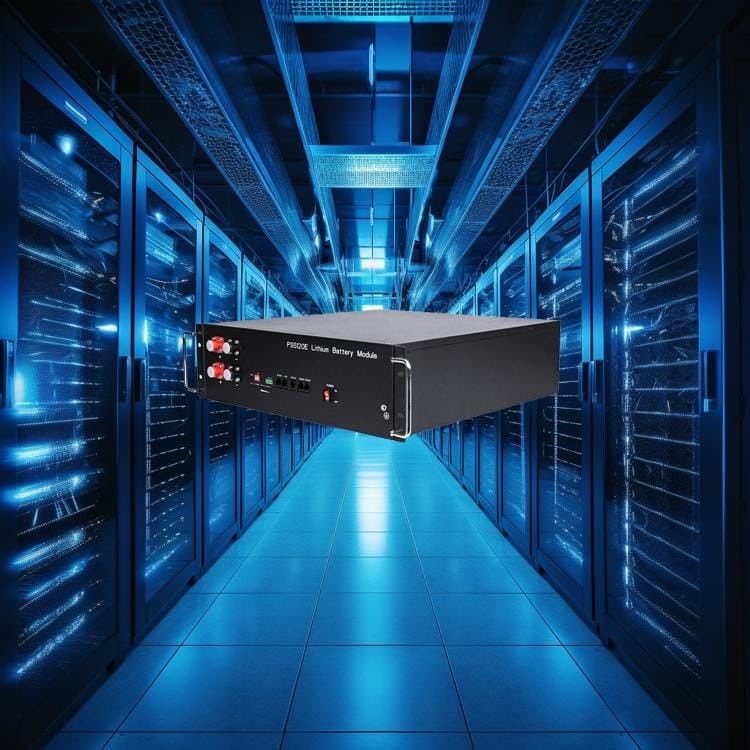

Rack Mounted Lithium Ion Battery 14Kwh Home Energy Storage System 48V Solar LiFePO4 Battery Pack
Rackmount Lithium Battery Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | ||
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 | ||
| Standard charge voltage | 54.6V(adjustable) | ||
| Max charge current | 50A | ||
| Discharge cut-off voltage | 42.5V(adjustable) | ||
| Max discharge current | 50A | ||
| Display | LCD(Optional) | ||
| Communication interface | CAN/RS485/RS232 | ||
| Cycle life | >6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~45°C | ||
| Discharge temperature range | -20~60°C | ||
| Color | Black | ||
| Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount | ||
Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery
Size of Rackmount Lithium Battery
Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
What We Offer?
Supply chain solution, strict quality control, real-time response
OEM/ODM Manufacturer, custom sizes and shapes available on request
Suggestion of new design or material, new technology and cost structure
Engineers team at your service
Flexible small orders are acceptable
One-stop supply to eliminating messy links
Send your inquiry directly to us
