Name: High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications
Brand: XWELL
SKU: XW-1024W-1
Rating: 4.7 (128 reviews)

Home > products > Rackmount Lithium Battery >

High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications

Place of Origin:

China

Brand Name:

XWELL

Certification:

UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:

XW-1024W-1

Document:

Product Brochure PDF

Request A Quote

High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications

Product Details

Operating Voltage Range:

456V-584V

Cell Type:

LiFePO4 Prismatic Cell

Max Charge/discharge Current:

100A

Communication Interface:

RS485, RS232, CAN

Nominal Capacity (kwh:

10.24khw

Nominal Voltage:

51.2V

Chemistry:

Lifepo4

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

USD

Packaging Details

Carton

Delivery Time

7-10 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5000 pcs per month

RELATED PRODUCTS

86-186-2049-2985

sales@esslithiumbattery.com

86-186-2049-2985

Contact Now

Product Description

High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications

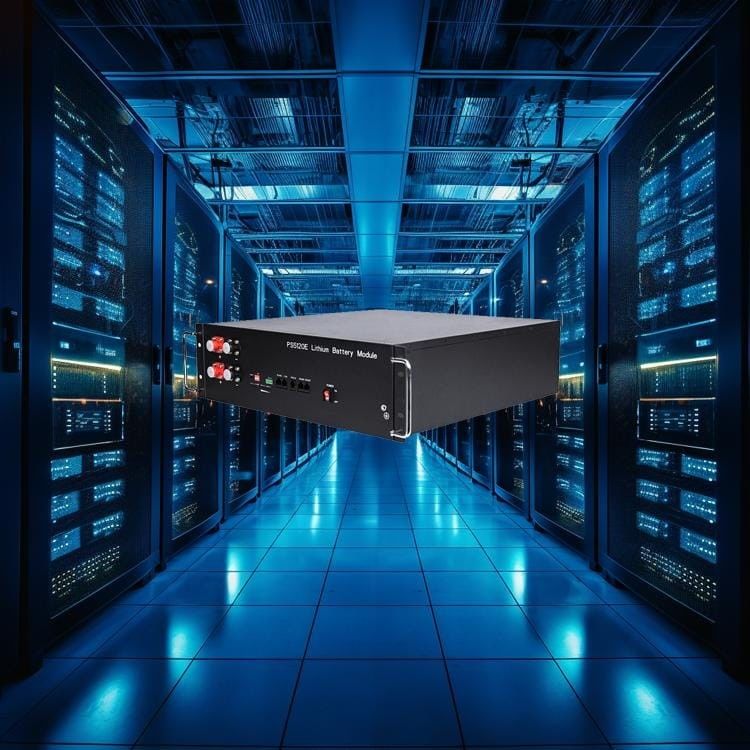

Rackmount Lithium Battery Energy Storage System

This high-voltage, rack-mounted lithium iron phosphate (LifePO4) battery system delivers 50 kWh of reliable, high-performance energy storage in a compact, space-saving form factor. Designed for industrial, commercial, and utility-scale applications, this modular battery solution provides long-lasting, maintenance-free power backup and grid integration capabilities.

Key Features:

High-voltage 380-480V AC operation for seamless integration with three-phase industrial electrical systems
50 kWh total capacity from a single rack-mounted enclosure, with scalable modular design for increased runtime
Lithium iron phosphate (LifePO4) battery chemistry offers superior safety, thermal stability, and cycle life
Rack-mount chassis enables easy installation in standard server rooms, electrical rooms, and equipment closets
Advanced battery management system optimizes performance, prevents overcharging/overheating, and extends lifespan
Rugged, industrial-grade construction with protective enclosure, shock/vibration resistance, and IP54 environmental rating
Quiet, low-maintenance design with no cooling fans or moving parts for reliable 24/7 operation

Rackmount Lithium Battery Specification

Model	51.2V50Ah	51.2V100Ah	51.2V200Ah
Nominal voltage	51.2V
Nominal capacity (kwh)	2.56	5.12	10.24
Cell type	LiFePO4
Standard charge voltage	54.6V(adjustable)
Max charge current	50A
Discharge cut-off voltage	42.5V(adjustable)
Max discharge current	50A
Display	LCD(Optional)
Communication interface	CAN/RS485/RS232
Cycle life	>6000 Cycles (80%DOD)
Charge temperature range	0~45°C
Discharge temperature range	-20~60°C
Color	Black
Dimension (mm)	442x410x133 3U	442x410x177 4U	550x442x220 5U
Weight	About 35Kg	About 42Kg	About 84Kg
Installation method	Rack Mount

Cell Specification of Rackmount Lithium Battery

High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications 0

Operation Pannel of Rackmount Lithium Battery

High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications 1

Size of Rackmount Lithium Battery

High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications 2

Structure of Rackmount Lithium Battery

High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications 3

Application of Rackmount Lithium Battery

High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications 4

Why choose us?

Technical specifications and performance capabilities
Safety record and certifications
Warranty terms and after-sales support
Integration with existing infrastructure
Cost-effectiveness and total cost of ownership
Company reputation, experience, and financial stability
Scalability and flexibility to adapt to changing needs

High voltage rack-mounted 50kWh Lifepo4 Rackmount Lithium Battery Energy Storage System for Industrial Applications 5
