OEM ODM Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications

OEM ODM Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications

Place of Origin:

China

Brand Name:

XWELL

Certification:

UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:

XW-1024W-1

Contact Us

Request A Quote
Product Details
Nominal Voltage:
40-58.4V
Nominal Capacity:
1000Ah
Standard Charge Voltage:
51.2V
Nominal Energy:
10-30 Kwh
Discharge Current:
1000A
Discharge Cut-off Voltage:
42.5V
Communication Interface:
RS485, RS232, CAN
Cycle Life:
>6000 Cycles(80%DOD)
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
USD
Packaging Details
Carton
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pcs per month
RELATED PRODUCTS
Contact Us
Product Description

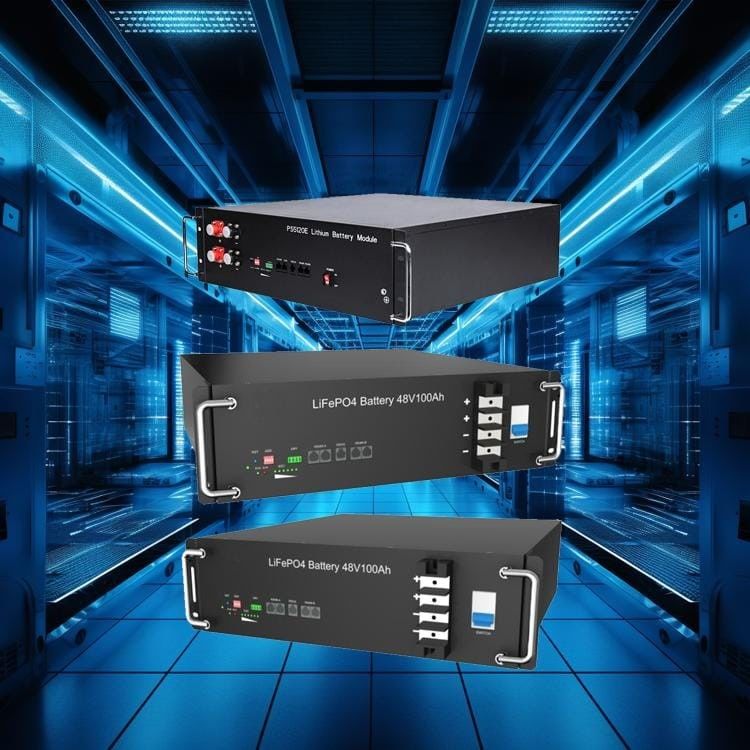

OEM ODM Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications


Rackmount Lithium Battery


These low-voltage, rack-mount lithium battery systems are designed for reliable, high-performance power backup and storage in industrial and manufacturing environments. Featuring a compact, space-saving form factor, these batteries provide consistent, long-lasting power to mission-critical equipment and systems.

Key Features:

  • Low-voltage operation (24V, 48V, or 72V DC) for compatibility with industrial electrical infrastructures
  • Rack-mount chassis for easy integration into standard server racks and enclosures
  • Lithium-ion battery chemistry offers high energy density, rapid charge/discharge capabilities, and extended service life
  • Modular, scalable design allows customization to meet specific power and runtime requirements
  • Advanced battery management system monitors cell health, optimizes charging, and prevents overheating/overcharging
  • Rugged, industrial-grade construction with protective housings, shock/vibration resistance, and weatherproofing
  • Quiet, low-maintenance operation with no cooling fans or moving parts


Rackmount Lithium Battery Specification


Model51.2V50Ah51.2V100Ah51.2V200Ah
Nominal voltage51.2V
Nominal capacity (kwh)2.565.1210.24
Cell typeLiFePO4
Standard charge voltage54.6V(adjustable)
Max charge current50A
Discharge cut-off voltage42.5V(adjustable)
Max discharge current50A
DisplayLCD(Optional)
Communication interfaceCAN/RS485/RS232
Cycle life>6000 Cycles (80%DOD)
Charge temperature range0~45°C
Discharge temperature range-20~60°C
ColorBlack
Dimension (mm)442x410x133
3U
442x410x177
4U
550x442x220
5U
WeightAbout 35KgAbout 42KgAbout 84Kg
Installation methodRack Mount


Cell Specification of Rackmount Lithium Battery

OEM ODM Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications 0

Operation Pannel of Rackmount Lithium Battery

OEM ODM Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications 1
Size of Rackmount Lithium Battery

OEM ODM Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications 2

Structure of Rackmount Lithium Battery

OEM ODM Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications 3

Application of Rackmount Lithium Battery

OEM ODM Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications 4


FAQ



1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.



2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Same capacity matched



3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C
35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.



4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD



5.What's the warranty of your 48V/51.2V battery pack?
5 years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs



6.Do your batteries support series or parallel connection?
Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff


OEM ODM Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications 5
