Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-LAR128100
Contact Us

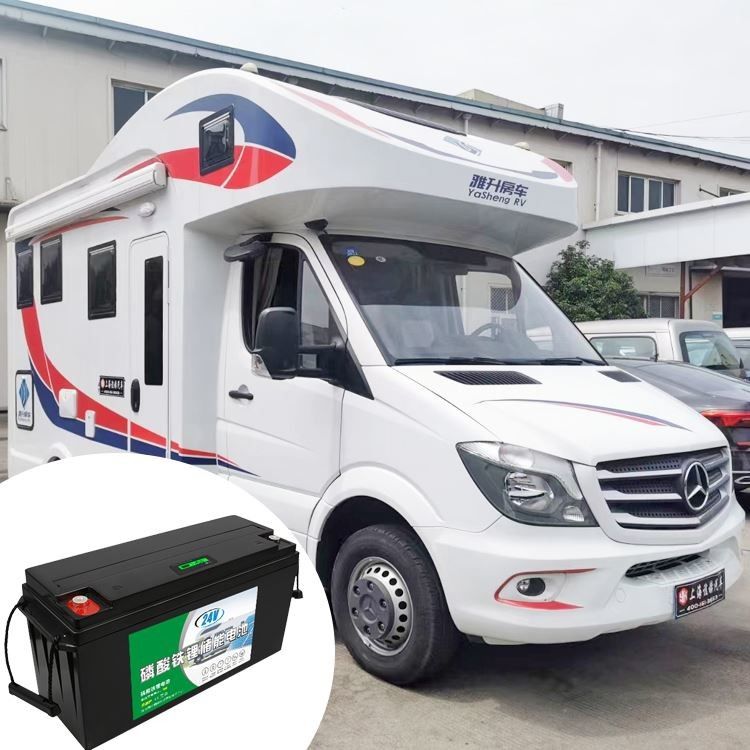

Manufacturer Supply Lithium LiFePO4 Battery 12V 7Ah 12ah 50ah 100ah 200ah For Small UPS System Ess With Smart BMS
Overview
These are 12V lithium iron phosphate (LiFePO4) battery packs designed for a variety of off-grid and backup power applications. They feature capacities ranging from 50Ah to 200Ah and incorporate an advanced battery management system (BMS) for enhanced safety and performance.
Key Features
Lithium Battery Replacement Lead-Acid Specification
| Model | 12.8V7Ah | 12.8V12Ah | 12.8V50Ah | 12.8V100Ah | 12.8V200Ah |
| Nominal Voltage | 12.8V | ||||
| Nominal Capacity @25C | 7AH | 12AH | 50AH | 100AH | 200AH |
| Nominal Energy @25°C | 89.6WH | 153.6WH | 640WH | 1280WH | 2560WH |
| Battery Cell Type | Cylinder | Prismatic 50Ah | Prismatic 100Ah | Prismatic 100Ah | |
| Configuration (xSxP) | 4S1P | 4S2P | 4S1P | 4S1P | 4S2P |
| Max. Continuous Charge Current @25°C | 7A | 12A | 50A | 100A | 100A |
| Max. Continuous Discharge Current @25°C | 7A | 12A | 50A | 100A | 100A |
| DC Resistance | ≤10mΩ | ||||
| Full Charged Voltage | 14.6V | ||||
| Discharge Cut-off Voltage | 10V | ||||
| Operate Temperature Range | Charge: 0°C~55°C; Discharge: -20°C~60°C; Storage: -20°C~45°C | ||||
| Dimension (mm) | 152x65x94mm | 152x99.5x100mm | 229x138x208mm | 326x171x215mm | 522x240x218mm |
| Weight (KG) | 1.1KG | 1.7KG | 7KG | 12.5KG | 25KG |
| Terminal Type | F1 terminal | Screw terminal | |||
| Cover Sealing type | Screw / gel sealing optional | ||||
| Waterproof | IP65 | ||||
| Cycle life | 100% DOD Cycles @ 25xC 1C/1C: >2000 times80% DOD Cycles @ 25C 1C/1C: >6000 times50% DoD Cycles @ 25C, 1C/1C: >5000 times | ||||
| LCD Screen Display | Optional (Show voltage V, Power %) | ||||
| Bluetooth | Optional (Bluetooth with mobile APP) | ||||
| Series and Parallels Function | Available to make in series and parallels to get 24V, 36V, 48V | ||||
| Heating Function | Optional, Suitable for cold area application | ||||
Our Advantages
Professional Technical Team, Xwell's R&D technical team has recievedmore than 20 invention and applicationpatents.
Professional Sales Team, xwell poccesses well-trained sales team which helps customers addressing difficulty meeting in battery or battery solution selecting.
Unique Pack Technique, xwell possesses special pack techinique to better protect the battery and increase the life span of the battery pack.
Puntual Delivery, xwell has strict production plan to promise on time delivery.
Safety Certification Gurantee, Most products have been certified according to international standard including CE,MSDS,UN38.3.etc.
Perfect after Sales-service, xwell has a professional QC team which applies strict quality controlon production and provide perfect after-sale service to customers
