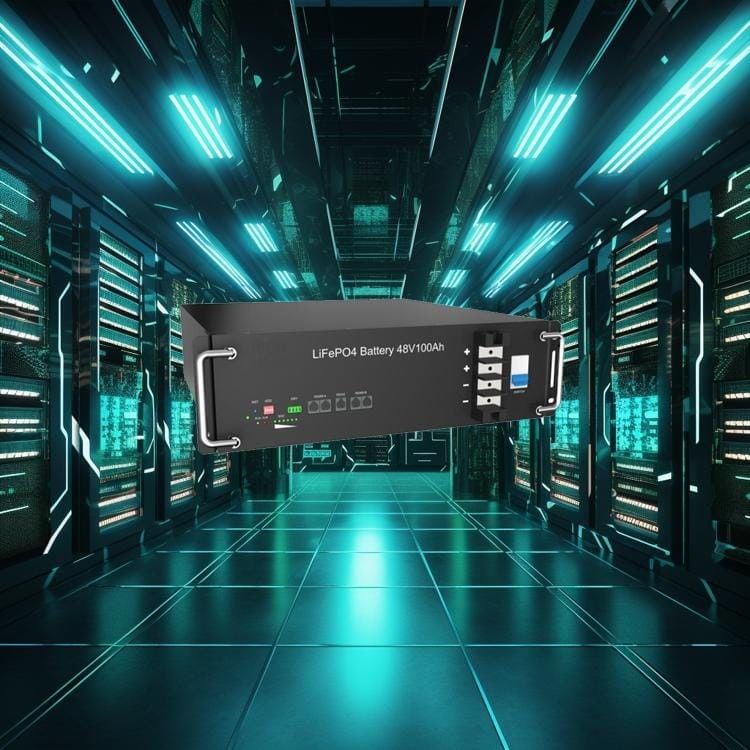

5.12kwh 100A Lithium Batterie Lifepo4 Rackmount Lithium Battery Home Energy Storage System

5.12kwh 100A Lithium Batterie Lifepo4 Rackmount Lithium Battery Home Energy Storage System

5.12kwh Rackmount Lithium Battery

100A Rackmount Lithium Battery

Place of Origin:

China

Brand Name:

XWELL

Certification:

UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:

XW-1024W-1

Contact Us

Request A Quote
Product Details
Max Continuous Charge Curre:
100A
Nominal Capacity:
100A
Voltage(V):
5.12kwh
Cell Type:
LiFePO4 Prismatic Cell
Discharge Cut-off Voltage:
42.5V
Communication Interface:
RS485, RS232, CAN
Nominal Capacity (kwh:
5.12khw
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
USD
Packaging Details
Carton
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pcs per month
RELATED PRODUCTS
Contact Us
Product Description

5.12kwh 100A Lithium Batterie Lifepo4 Rackmount Lithium Battery Home Energy Storage System



Rackmount Lithium Battery Energy Storage System​

Rackmount lithium-ion battery systems are modular energy storage solutions designed for installation in 19-inch server racks. They provide scalable, high-density battery backup power for applications like data centers, telecom networks, and industrial facilities.

Features

  • Lithium-ion battery cells, typically NMC or LFP chemistry
  • Modular, hot-swappable battery packs for easy capacity scaling
  • Integrated battery management system (BMS) for safety and monitoring
  • Rack-mountable enclosure with standard 19-inch rack dimensions
  • High energy and power density compared to lead-acid batteries
  • Long cycle life and low maintenance requirements
  •

Rackmount Lithium Battery Specification



Model 51.2V50Ah 51.2V100Ah 51.2V200Ah
Nominal voltage 51.2V
Nominal capacity (kwh) 2.56 5.12 10.24
Cell type LiFePO4
Standard charge voltage 54.6V(adjustable)
Max charge current 50A
Discharge cut-off voltage 42.5V(adjustable)
Max discharge current 50A
Display LCD(Optional)
Communication interface CAN/RS485/RS232
Cycle life >6000 Cycles (80%DOD)
Charge temperature range 0~45°C
Discharge temperature range -20~60°C
Color Black
Dimension (mm) 442x410x133
3U
442x410x177
4U
550x442x220
5U
Weight About 35Kg About 42Kg About 84Kg
Installation method Rack Mount



Cell Specification of Rackmount Lithium Battery



5.12kwh 100A Lithium Batterie Lifepo4 Rackmount Lithium Battery Home Energy Storage System 0



Operation Pannel of Rackmount Lithium Battery



5.12kwh 100A Lithium Batterie Lifepo4 Rackmount Lithium Battery Home Energy Storage System 1

Size of Rackmount Lithium Battery



5.12kwh 100A Lithium Batterie Lifepo4 Rackmount Lithium Battery Home Energy Storage System 2



Structure of Rackmount Lithium Battery



5.12kwh 100A Lithium Batterie Lifepo4 Rackmount Lithium Battery Home Energy Storage System 3



Application of Rackmount Lithium Battery



5.12kwh 100A Lithium Batterie Lifepo4 Rackmount Lithium Battery Home Energy Storage System 4



Why choose us?



We production of battery products are widely used in communications, power, financial systems, uninterruptible power supply systems (UPS), power plant and substation switch control, solar panels, controllers inverter etc solar systems, emergency lighting, alarm systems, cars, ships, motorcycles, electric bicycles and other industries. Sales network covers all provinces, municipalities, autonomous regions and established offices in various places and after-sales service center.
Our team with Yuasa ,BYD battery senior consultant,High quality technical management team, advanced production and testing equipment to ensure the quality of the battery is reliable.

5.12kwh 100A Lithium Batterie Lifepo4 Rackmount Lithium Battery Home Energy Storage System 5
