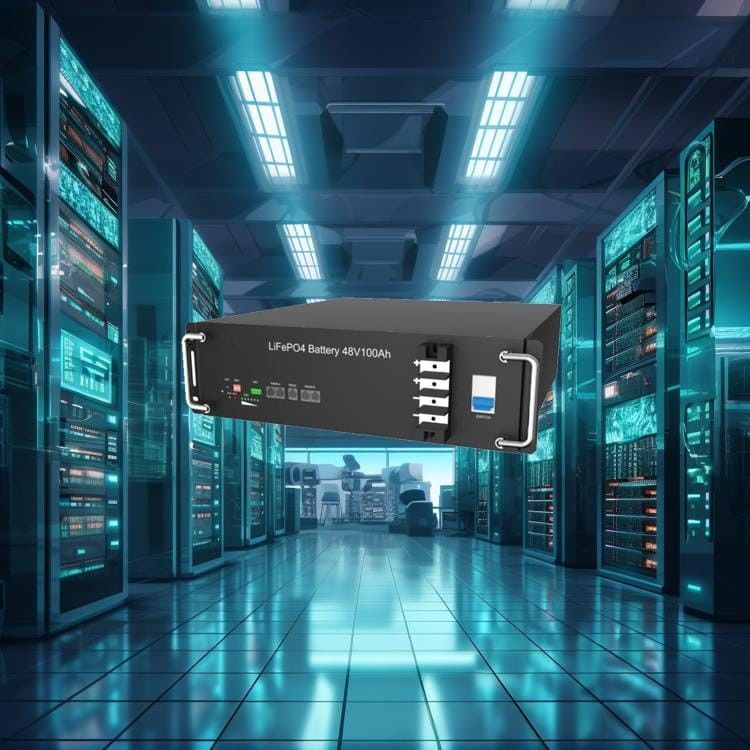

Rackmounted Lithium LFP Battery 2KWH 5KWH 10KWH Solar ESS For Commercial Industrial Use
Rackmount Lithium Battery Structure and Characteristics
Rackmount lithium batteries are a type of energy storage solution that is designed to be mounted on standard equipment racks. They offer several advantages over traditional lead-acid batteries, including higher energy density, longer lifespan, and faster charging capabilities.
Characteristics:
1,Energy Density: Rackmount lithium batteries have a high energy density, which means they can store a significant amount of energy in a relatively small and lightweight package. This is advantageous in applications where space is limited or weight restrictions are a concern.
2,Long Lifespan: Lithium-ion batteries used in rackmount applications typically have a longer lifespan compared to traditional lead-acid batteries. They can withstand a higher number of charge/discharge cycles without significant capacity degradation, resulting in a longer operational life.
3,Fast Charging: Rackmount lithium batteries have a fast charging capability, allowing them to recharge quickly compared to lead-acid batteries. This reduces downtime and increases the availability of stored energy.
4,High Efficiency: Lithium-ion batteries have high charge and discharge efficiency, which means they can effectively convert and store electrical energy. This results in reduced energy losses and higher overall system efficiency.
5,Lightweight and Compact: Rackmount lithium batteries are lightweight and compact compared to lead-acid batteries with similar energy storage capacity. This makes them easier to handle, transport, and install.
Rackmount Lithium Battery Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | ||
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 | ||
| Standard charge voltage | 54.6V(adjustable) | ||
| Max charge current | 50A | ||
| Discharge cut-off voltage | 42.5V(adjustable) | ||
| Max discharge current | 50A | ||
| Display | LCD(Optional) | ||
| Communication interface | CAN/RS485/RS232 | ||
| Cycle life | >6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~45°C | ||
| Discharge temperature range | -20~60°C | ||
| Color | Black | ||
| Dimension (mm) | 442x410x133 3U | 442x410x177 4U | 550x442x220 5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount | ||
Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery
Size of Rackmount Lithium Battery
Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
Why choose us?
We production of battery products are widely used in communications, power, financial systems, uninterruptible power supply systems (UPS), power plant and substation switch control, solar panels, controllers inverter etc solar systems, emergency lighting, alarm systems, cars, ships, motorcycles, electric bicycles and other industries. Sales network covers all provinces, municipalities, autonomous regions and established offices in various places and after-sales service center.
Our team with Yuasa ,BYD battery senior consultant,High quality technical management team, advanced production and testing equipment to ensure the quality of the battery is reliable.
