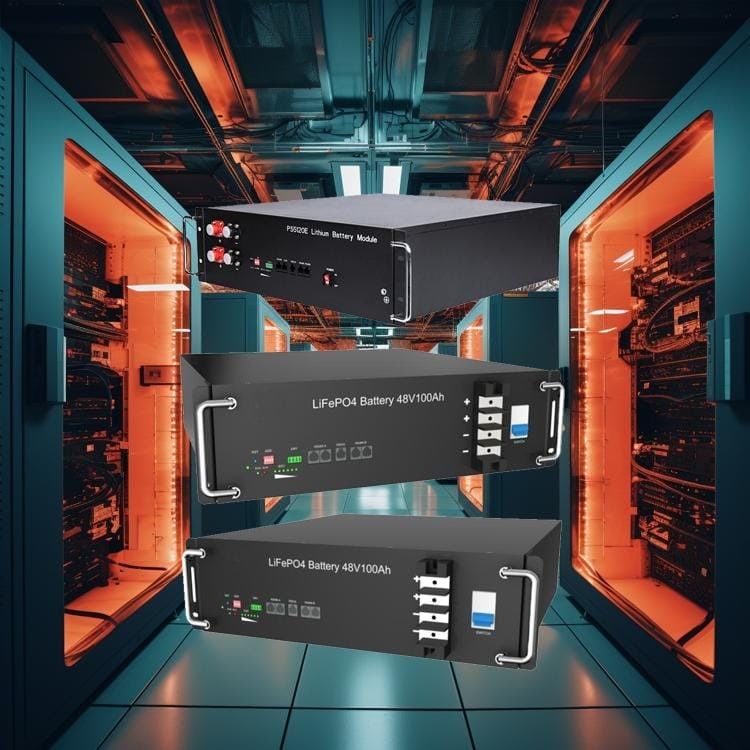

OEM 2khw 10khw Rackmount Lithium Battery Rack-Mounted Home Energy Storage Battery

OEM 2khw 10khw Rackmount Lithium Battery Rack-Mounted Home Energy Storage Battery

Place of Origin:

China

Brand Name:

XWELL

Certification:

UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:

XW-2560W-1

Contact Us

Request A Quote
Product Details
Standard Voltage:
51.2V
Capacity:
2.56kwh 5.12kwh 10.24kwh
Communication Interface:
RS485, RS232, CAN
Energy:
2.56kwh
Cell Model:
LiFePO4 Prismatic
Cycle Life:
>6000 Cycles(80%DOD)
Discharge Current:
50A
Max Charge Current:
50A
Discharge Cut-off Voltage:
51.2V
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Carton
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pcs per month
RELATED PRODUCTS
Contact Us
Product Description

OEM 2khw 10khw Rackmount Lithium Battery Rack-Mounted Home Energy Storage Battery



Rack-mounted energy storage (Home/lndustrial)

The Rack-Mounted Battery Series features a modular design that allows for flexible combinations of battery capacity. The series offers battery capacities of 2.5kWh, 5kWh and 10kWh to meet different energy needs. The series features A-grade lithium iron phosphate cells with a cycle life of over 3000 times, built-in BMS for safety protection, and supports RS485/RS232/CAN communication protocols. The series is also compatible with various energy storage inverters on the market, providing stable energy storage and output.

Good Quality -- ISO9001:2019 Standard
37 production processes and 7 steps quality check to promise stable quality for you. Xwell has very strictly quality control system includind incoming materials control, in-process quality control and outgoing quality control.

We do 100% full quality check and aging test to ensure product quality.



Rackmount Lithium Battery Specification



Model 51.2V50Ah 51.2V100Ah 51.2V200Ah
Nominal voltage 51.2V
Nominal capacity (kwh) 2.56 5.12 10.24
Cell type LiFePO4
Standard charge voltage 54.6V(adjustable)
Max charge current 50A
Discharge cut-off voltage 42.5V(adjustable)
Max discharge current 50A
Display LCD(Optional)
Communication interface CAN/RS485/RS232
Cycle life >6000 Cycles (80%DOD)
Charge temperature range 0~45°C
Discharge temperature range -20~60°C
Color Black
Dimension (mm) 442x410x133
3U
442x410x177
4U
550x442x220
5U
Weight About 35Kg About 42Kg About 84Kg
Installation method Rack Mount



Cell Specification of Rackmount Lithium Battery



OEM 2khw 10khw Rackmount Lithium Battery Rack-Mounted Home Energy Storage Battery 0



Operation Pannel of Rackmount Lithium Battery



OEM 2khw 10khw Rackmount Lithium Battery Rack-Mounted Home Energy Storage Battery 1

Size of Rackmount Lithium Battery



OEM 2khw 10khw Rackmount Lithium Battery Rack-Mounted Home Energy Storage Battery 2



Structure of Rackmount Lithium Battery



OEM 2khw 10khw Rackmount Lithium Battery Rack-Mounted Home Energy Storage Battery 3



Application of Rackmount Lithium Battery



OEM 2khw 10khw Rackmount Lithium Battery Rack-Mounted Home Energy Storage Battery 4

Features



High Energy Density: Having excellent energy density means that it can store more power under the same volume and weight to meet long time and high intensity power demand. Features



Long cycle life: After careful design and optimization, this product has a charge/discharge cycle life of up to thousands of times, which greatly reduces the frequency of battery replacement and maintenance costs.



Fast charging: Supporting fast charging technology, the battery can be fully charged in a short time, which greatly improves the usage efficiency.



Safe and stable: Built-in multiple safety protection measures, including overcharging, over-discharging, overheating, short-circuit and other protection mechanisms, to ensure the safety of the use process.



Environmental protection and energy saving: Made of environmentally friendly materials, it is pollution-free, while the high efficiency of energy utilization also helps to reduce energy waste, in line with the concept of green development.



OEM 2khw 10khw Rackmount Lithium Battery Rack-Mounted Home Energy Storage Battery 5
