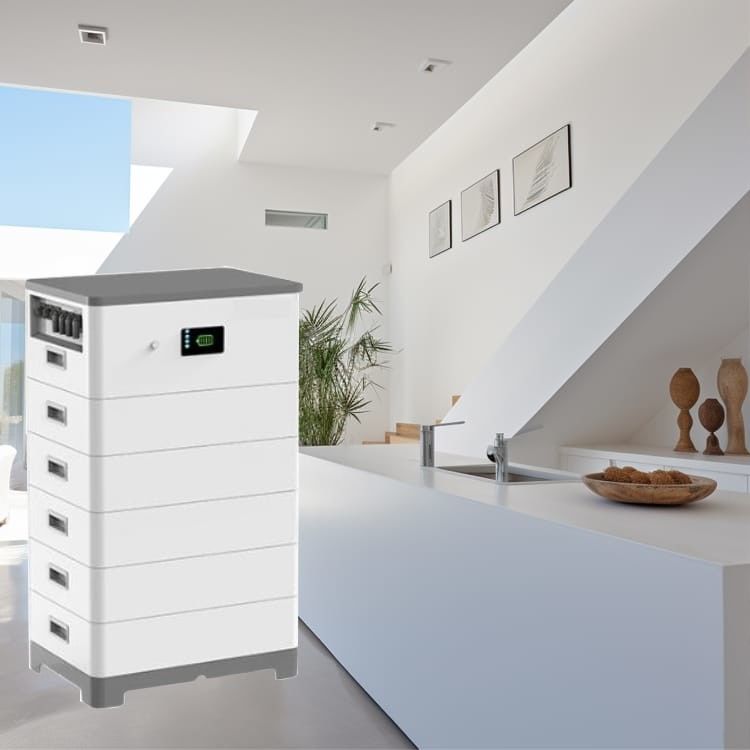

ESS 2.56KWH 5.12KWH 10.24KWH Lithium Ion LiFePO4 Battery Solar Energy Storage System

ESS 2.56KWH 5.12KWH 10.24KWH Lithium Ion LiFePO4 Battery Solar Energy Storage System

Place of Origin:

China

Brand Name:

XWELL

Certification:

UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:

XW-5120W

Contact Us

Request A Quote
Product Details
Standard Charge Voltage:
3.6 Volts
Internal Impedance:
≤0.8 Milliohms
Standard Voltage:
3.2V
Size:
Width:135±1mm
Voltage:
40V
Maximum Discharge Current:
50A
Max Charge Current:
40A
Max Discharge Current:
50A
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Carton
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pcs per month
RELATED PRODUCTS
Contact Us
Product Description

ESS 2.56KWH 5.12KWH 10.24KWH Lithium Ion LiFePO4 Battery Solar Energy Storage System



Description



Battery Energy Storage System (BESS) is a system that uses lithium battery/lead battery as an energy storage carrier to store electric energy and supply electric energy within a certain period of time, and the electric energy provided has the functions of smooth transition, peak shaving and valley filling, frequency modulation and voltage regulation.



Feature



1. A-Grade Cells, High safety, long cycle life, and environmental friendly.
2. User-friendly, Easy to use with touch screen.
3. Deep customization, Can be tailored to specific needs with easy expansion and customization.
4. Parallel operation, Multiple batteries can be connected in parallel.



Home Energy Storage System Specification



No. Item General Parameter Remark
1 Material system Lithium iron phosphate /
2 Typical Capacity 50Ah 0.5C Standard discharge
3 Operating voltage range 2.5~3.65V /
4 Nominal Voltage 3.2V Mean Operation Voltage
5 Standard Charge Voltage 3.6V



By standard charge method

6 Internal Impedance ≤0.8mΩ 1kHz;2%SOC
7 Dimension Thickness: ≤37.5mm



Initial Dimension

Width:135±1mm
Hight:192±1mm
8 Weight ≤2.03 Kg
9 Standard charge current 0.5C 0.5C constant current,3.65V constant voltage charge to 3.65V, continue charging till current decline to ≤0.05C
10

Maximum Charging

Current

50 A 25±2℃
11 Standard discharge Current 0.5C 25±2℃
12 Maximum discharge current 50 A 25±2℃
13 Maximum Discharging Current 100A(2C) 25℃, 50%SOC, 30s





















































Home Energy Storage System Operation Pannel



ESS 2.56KWH 5.12KWH 10.24KWH Lithium Ion LiFePO4 Battery Solar Energy Storage System 0



Home Energy Storage System Size



ESS 2.56KWH 5.12KWH 10.24KWH Lithium Ion LiFePO4 Battery Solar Energy Storage System 1



Home Energy Storage System Single Battery Pack Wiring Diagram



ESS 2.56KWH 5.12KWH 10.24KWH Lithium Ion LiFePO4 Battery Solar Energy Storage System 2



Home Energy Storage System Parallels Connection Wiring Diagram



ESS 2.56KWH 5.12KWH 10.24KWH Lithium Ion LiFePO4 Battery Solar Energy Storage System 3



FAQ



Q: What is your MOQ?
A: There is no MOQ and we also support a sample service.



Q: How about the payment terms?
A: T/T, Paypal, Wire Transfer and Online Transfer are all acceptable.



Q: Is the battery kit equipped with BMS?
A: Yes, our battery kit comes complete with the BMS and all the accessories needed to assemble the battery pack. Customers can assemble their own battery packs if they have enough batteries.



Q: What options are available for the BMS that comes with the battery kit?
A: 100A/150A/200A BMS are availble for customers to choose.



Q: What is the shipping time limit for battery kit?
A:The transit time is approximately 35-38 business days.



Q: What should I do when I receive the battery kits?
A: First open the box when you sign for it to check that the contents have not been damaged in transit, and then double check that the battery kit is complete with all the accessories.



Q: Why has my logistics information not been updated?
A: The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
