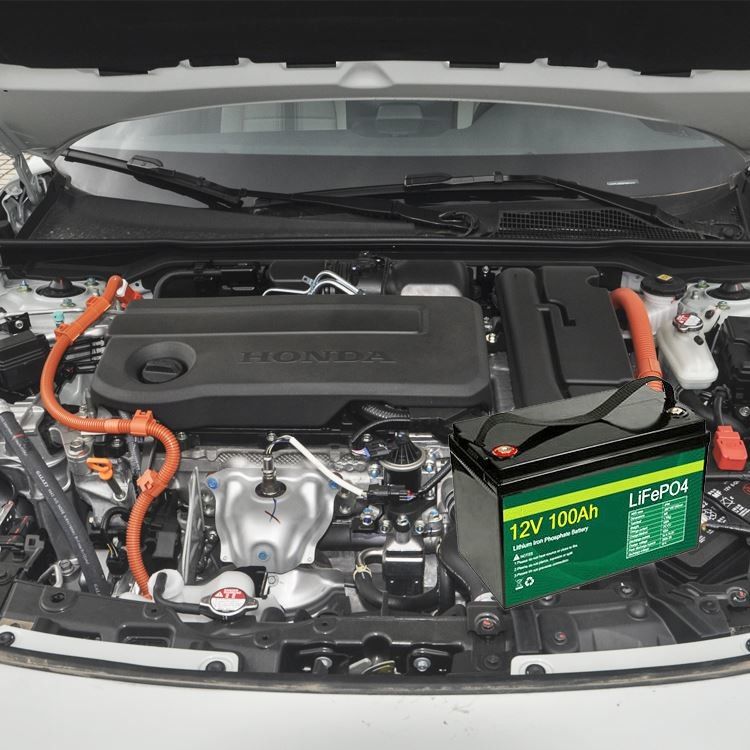

Smart BMS Lithium Lifepo4 Battery 12V 100ah 200ah For Small UPS System

Smart BMS Lithium Lifepo4 Battery 12V 100ah 200ah For Small UPS System

BMS Lithium Lifepo4 Battery

Lithium Lifepo4 Battery 12V

UPS lifepo4 lithium battery

Place of Origin:


Brand Name:



UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:


Contact Us

Request A Quote
Product Details
Nominal Capacity:
7 - 200AH
Nominal Energy:
89.6 - 2560WH
Max Charge Current:
7 - 100A
Battery Cell:
Cylindrical And Prismatic Type
Nominal Voltage:
DC Resistance:
Terminal Type:
F1 Connector
Cover Sealing Type:
Screw / Gel Sealing Optional
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pcs per month
Contact Us
Product Description

Manufacturer Supply Lithium LiFePO4 Battery 12V 7Ah 12ah 50ah 100ah 200ah For Small UPS System Ess With Smart BMS


ESS Lithium Battery Features


Waterproof protection: The top cover and bottom shell aremolded by injection molding and the terminal is fixed with glue, effectively prevent rain damage to the battery because of good sealing

Portable hand-held: Humanized portable design, comfortable and portable, so that you can set sail on your journey at any time.

LED Battery Display: You can read the battery voltage and capacity from the LED screen.(it's optional function)

Terminals: M8 pure copper terminals can supporthigh current,good conductivity, rustand corrosion resistance.


ESS Lithium Battery Applications


1. Lithium Battery for Electric Cars/Motorcycle
2. Lithium Battery for RV/ Camping
3. Lithium Battery for Boats /Yacht/ Marine
4. Lithium Battery for Solar energy storage system
5. Lithium Battery for Medical Devices
6. Lithium Battery for Robots


Lithium Battery Replacement Lead-Acid Specification



Model 12.8V7Ah 12.8V12Ah 12.8V50Ah 12.8V100Ah 12.8V200Ah
Nominal Voltage 12.8V
Nominal Capacity @25C 7AH 12AH 50AH 100AH 200AH
Nominal Energy @25°C 89.6WH 153.6WH 640WH 1280WH 2560WH
Battery Cell Type Cylinder Prismatic 50Ah Prismatic 100Ah Prismatic 100Ah
Configuration (xSxP) 4S1P 4S2P 4S1P 4S1P 4S2P
Max. Continuous Charge Current @25°C 7A 12A 50A 100A 100A
Max. Continuous Discharge Current @25°C 7A 12A 50A 100A 100A
DC Resistance ≤10mΩ
Full Charged Voltage 14.6V
Discharge Cut-off Voltage 10V
Operate Temperature Range Charge: 0°C~55°C; Discharge: -20°C~60°C; Storage: -20°C~45°C
Dimension (mm) 152x65x94mm 152x99.5x100mm 229x138x208mm 326x171x215mm 522x240x218mm
Weight (KG) 1.1KG 1.7KG 7KG 12.5KG 25KG
Terminal Type F1 terminal Screw terminal
Cover Sealing type Screw / gel sealing optional
Waterproof IP65
Cycle life 100% DOD Cycles @ 25xC 1C/1C: >2000 times80% DOD Cycles @ 25C 1C/1C: >6000 times50% DoD Cycles @ 25C, 1C/1C: >5000 times
LCD Screen Display Optional (Show voltage V, Power %)
Bluetooth Optional (Bluetooth with mobile APP)
Series and Parallels Function Available to make in series and parallels to get 24V, 36V, 48V
Heating Function Optional, Suitable for cold area application




Our Advantages

Professional Technical Team, Xwell's R&D technical team has recievedmore than 20 invention and applicationpatents.

Professional Sales Team, xwell poccesses well-trained sales team which helps customers addressing difficulty meeting in battery or battery solution selecting.

Unique Pack Technique, xwell possesses special pack techinique to better protect the battery and increase the life span of the battery pack.

Puntual Delivery, xwell has strict production plan to promise on time delivery.

Safety Certification Gurantee, Most products have been certified according to international standard including CE,MSDS,UN38.3.etc.

Perfect after Sales-service, xwell has a professional QC team which applies strict quality controlon production and provide perfect after-sale service to customers
