Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-LAR128100
Document:
Contact Us

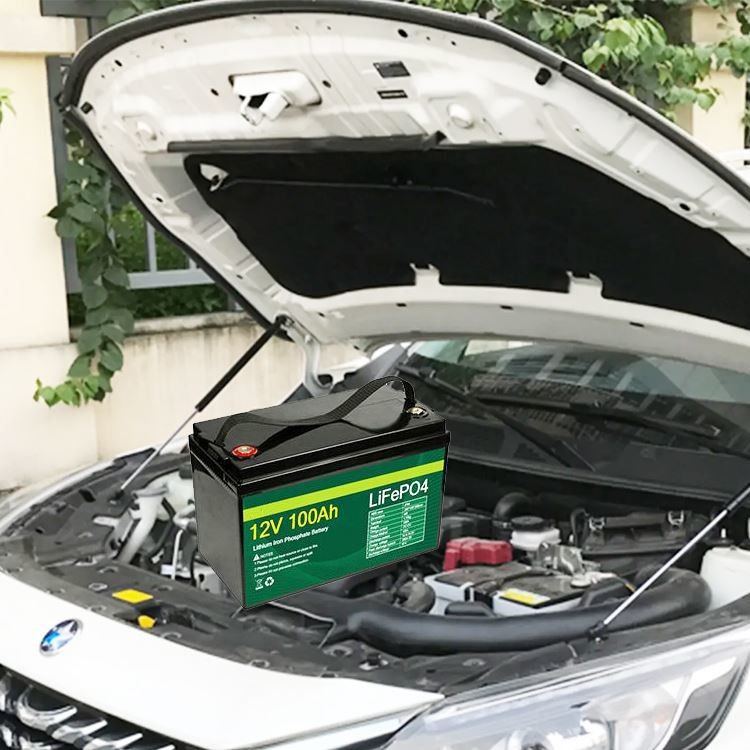

12.8V 100AH Lead Acid Replacement Deep Cycle LiFePO4 Lithium Battery IP65 ABS Plastic Case Solar Energy System
Lithium Battery Replacement Lead-Acid Features
Designed to replace the most popular lead-acid models, ABS lithium iron phosphate batteries are widely used in UPS and energy storage systems. These are also suitable for applications such as RV battery . Our company specialises in offering the 24V,12V range of Lithium Iron Phosphate batteries built into rectangular plastic cases, which can replace most popular AGM lead acid battery sizes for UPS, emergency lighting, security, e-bikes or other applications where the customer requires a longer application life and/or higher cycle capacity and an affordable price point. These Li-ion batteries operate at normal atmospheric pressure and are therefore very safe, while having the high energy density and light weight you would expect. Our LiFePo4 batteries can operate over a wide temperature range of -20 to +60 degrees Celsius and can be cycled over 3,000 times. They are approximately 1/3 the weight of an equivalent lead-acid battery and have a built-in BMS (battery management system) with overload, overcharge, overdischarge, balancing and high temperatureprotection.
Lithium Battery Replacement Lead-Acid Specification
Model | 12.8V7Ah | 12.8V12Ah | 12.8V50Ah | 12.8V100Ah | 12.8V200Ah |
Nominal Voltage | 12.8V | ||||
Nominal Capacity @25C | 7AH | 12AH | 50AH | 100AH | 200AH |
Nominal Energy @25°C | 89.6WH | 153.6WH | 640WH | 1280WH | 2560WH |
Battery Cell Type | Cylinder | Prismatic 50Ah | Prismatic 100Ah | Prismatic 100Ah | |
Configuration (xSxP) | 4S1P | 4S2P | 4S1P | 4S1P | 4S2P |
Max. Continuous Charge Current @25°C | 7A | 12A | 50A | 100A | 100A |
Max. Continuous Discharge Current @25°C | 7A | 12A | 50A | 100A | 100A |
DC Resistance | ≤10mΩ | ||||
Full Charged Voltage | 14.6V | ||||
Discharge Cut-off Voltage | 10V | ||||
Operate Temperature Range | Charge: 0°C~55°C; Discharge: -20°C~60°C; Storage: -20°C~45°C | ||||
Dimension (mm) | 152x65x94mm | 152x99.5x100mm | 229x138x208mm | 326x171x215mm | 522x240x218mm |
Weight (KG) | 1.1KG | 1.7KG | 7KG | 12.5KG | 25KG |
Terminal Type | F1 terminal | Screw terminal | |||
Cover Sealing type | Screw / gel sealing optional | ||||
Waterproof | IP65 | ||||
Cycle life | 100% DOD Cycles @ 25xC 1C/1C: >2000 times80% DOD Cycles @ 25C 1C/1C: >6000 times50% DoD Cycles @ 25C, 1C/1C: >5000 times | ||||
LCD Screen Display | Optional (Show voltage V, Power %) | ||||
Bluetooth | Optional (Bluetooth with mobile APP) | ||||
Series and Parallels Function | Available to make in series and parallels to get 24V, 36V, 48V | ||||
Heating Function | Optional, Suitable for cold area application |
Our Advantages
Professional Technical Team, Xwell's R&D technical team has recievedmore than 20 invention and applicationpatents.
Professional Sales Team, xwell poccesses well-trained sales team which helps customers addressing difficulty meeting in battery or battery solution selecting.
Unique Pack Technique, xwell possesses special pack techinique to better protect the battery and increase the life span of the battery pack.
Puntual Delivery, xwell has strict production plan to promise on time delivery.
Safety Certification Gurantee, Most products have been certified according to international standard including CE,MSDS,UN38.3.etc.
Perfect after Sales-service, xwell has a professional QC team which applies strict quality controlon production and provide perfect after-sale service to customers
