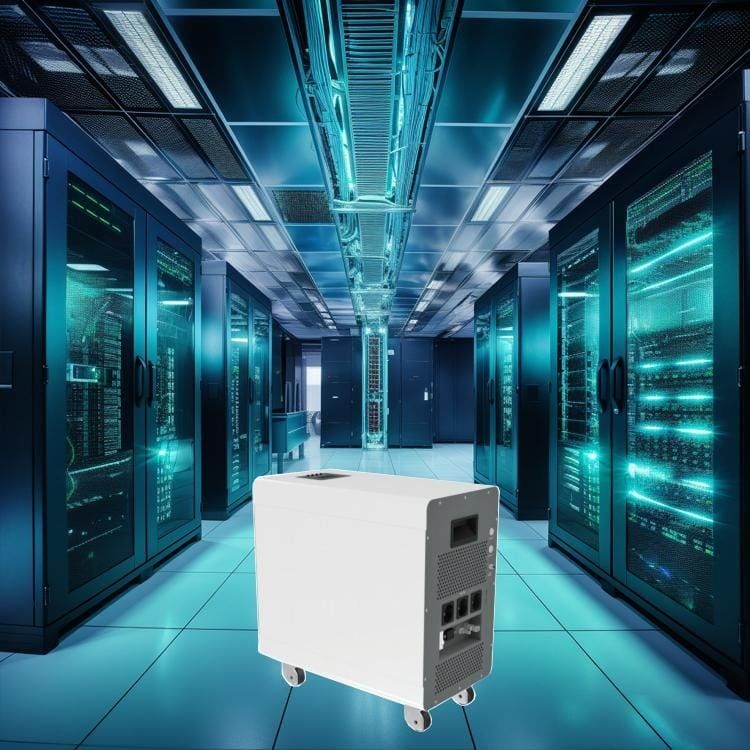

5kwh Lithium Ion Batteries 100ah With Hybrid Inverter In All In One Solar Power System Ess
Lithium battery inverter description
51.2V 100AH 3KW-5KWh All in one Energy Storage System can be equipped a 230V AC 3kw/5kw Hybrid inverter and 5kwh/10Kwh battery inside,as well as two 3-phase Sockets and 2-phase Sockets,2 USB port, it can meet your home demand of normal electric power,it has 6000 cycles long life at 80% DOD,also it can be moved easily with 4 roller to install,you can use solar and grid to charge the system,it can be up to 16 sets in parallel,which is expand to 80kwh,it is the most product for your home using.
All in One Energy Storage System Specification
| Battery Parameters | ||
| Model | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | |
| Nominal capacity (kwh) | 5KWh | 10KWh |
| Cell type | LiFePO4 | |
| Cycle life | >6000 Cycles(80%DOD) | |
| Charge temperature range | 0~65°C | |
| Discharge temperature range | -20~65°C | |
| Maximum continuous charge current | 50A | |
| Maximum continuous discharge current | 100A | |
| Color | Black /White | |
| Dimension (mm) | 710x300x600 | 710x300x800 |
| Weight | 81Kg | 110Kg |
| Installation method | Floor type with wheels | |
| Inverter Parameters | ||
| Rated power | 3.2KW | |
| Peak power | 5KW | |
| Output wave form | Pure sine wave | |
| Input/Output AC voltage | AC 110V/220V | |
| Input/Output AC voltage frequency | 50Hz/60Hz | |
All in One Energy Storage System Connection Diagram
Our service
1. 3 years warranty for solar lights and solar power generation system, 15 years warranty for solar panels.
2. Good packaging.
3. The main components are matched with 1% accessories.
4. In addition to customer service spare parts, customers need to take photos of damaged parts or confirm test data, and we will send damaged parts or brand new products to consumers. (Consumers who give up the opportunity to cooperate again need to bear the freight by themselves)
5. You are welcome to contact us 24 hours a day.
Company Information
We are a technological innovation company, mainly engaged in R&D and sales of lithium battery and battery pack technology, focusing on the R&D and manufacturing of new energy storage products.
In the beginning of the company establishment in 2005, we occupied 40% market share in Guangdong Province with single-chip programming charging solution, and won exclusive orders from Wal-Mart, after 16 years continuously development, now the company has industry-leading lithium battery PACK R&D experience and manufacturing equipment, and a professional technical team provides one-stop service of new energy battery products for domestic and foreign customers regarding the industry needs.
