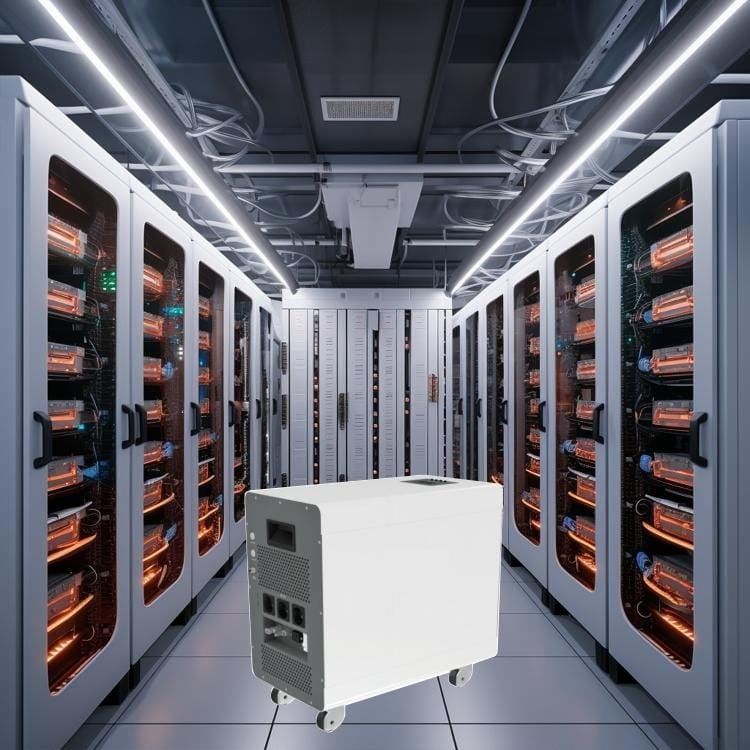

51.2V Solar Inverter Hybrid Battery Pack Power Wall All In One Inverterand Lithium Lon Battery
Lithium battery inverter features
1. Pure sine wave solar inverter.
2. Output power factor 1.
3. Parallel operation up to 9 units.
4. High PV input voltage range.
5. Battery independent design.
6. Built-in 100A MPPT solar charger.
7. Battery equalization function to optimize battery performance and extend life cycle.
8. Built-in anti-dusk kit for harsh environment. system life.
Lithium battery product advantage
1. Safe lithium iron phosphate battery.
2. Small and ultra-light modules.
3. Each battery pack is equipped with an intelligent battery management system to effectively manage the modules.
4. Compared with traditional modules, it can meet the capacity storage and greatly improve the cycle life
All in One Energy Storage System Specification
| Battery Parameters | ||
| Model | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | |
| Nominal capacity (kwh) | 5KWh | 10KWh |
| Cell type | LiFePO4 | |
| Cycle life | >6000 Cycles(80%DOD) | |
| Charge temperature range | 0~65°C | |
| Discharge temperature range | -20~65°C | |
| Maximum continuous charge current | 50A | |
| Maximum continuous discharge current | 100A | |
| Color | Black /White | |
| Dimension (mm) | 710x300x600 | 710x300x800 |
| Weight | 81Kg | 110Kg |
| Installation method | Floor type with wheels | |
| Inverter Parameters | ||
| Rated power | 3.2KW | |
| Peak power | 5KW | |
| Output wave form | Pure sine wave | |
| Input/Output AC voltage | AC 110V/220V | |
| Input/Output AC voltage frequency | 50Hz/60Hz | |
All in One Energy Storage System Connection Diagram
Our service
1. 3 years warranty for solar lights and solar power generation system, 15 years warranty for solar panels.
2. Good packaging.
3. The main components are matched with 1% accessories.
4. In addition to customer service spare parts, customers need to take photos of damaged parts or confirm test data, and we will send damaged parts or brand new products to consumers. (Consumers who give up the opportunity to cooperate again need to bear the freight by themselves)
5. You are welcome to contact us 24 hours a day.
Company Information
We are a technological innovation company, mainly engaged in R&D and sales of lithium battery and battery pack technology, focusing on the R&D and manufacturing of new energy storage products.
In the beginning of the company establishment in 2005, we occupied 40% market share in Guangdong Province with single-chip programming charging solution, and won exclusive orders from Wal-Mart, after 16 years continuously development, now the company has industry-leading lithium battery PACK R&D experience and manufacturing equipment, and a professional technical team provides one-stop service of new energy battery products for domestic and foreign customers regarding the industry needs.
