Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-3200W
Contact Us

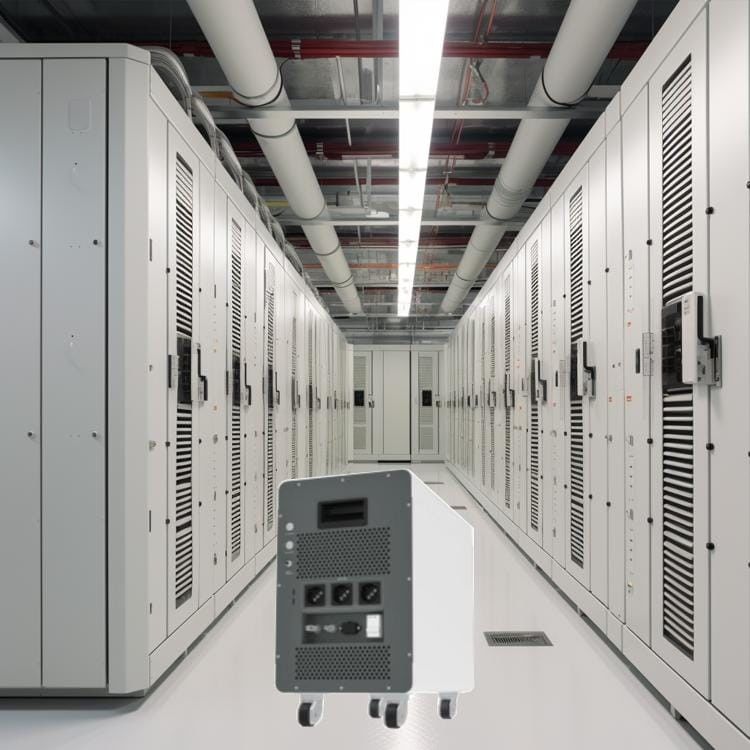

All In One 5kw 10kw 15kw LiFePO4 Storage Battery And Single Phase 110V 220V Hybrid Inverter For Home Use
Attractive Design
Xwell Lithium battery has compact design, LCD screen,convenient setting buttons, bluetooth Monitor on your smartphones,
and cables&accessories ready for installation.
To welcome the world cooperation we accept OEM with your logo design!
Wide Application
Xwell Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, Xwell has won global
approval!
Integrated Function
Xwell battery can be installed in parallel with combiner box for protection, with it's integrated BMS communication protocol
to comprehensive hybrid and off grid inverters!
All in One Energy Storage System Specification
| Battery Parameters | ||
| Model | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | |
| Nominal capacity (kwh) | 5KWh | 10KWh |
| Cell type | LiFePO4 | |
| Cycle life | >6000 Cycles(80%DOD) | |
| Charge temperature range | 0~65°C | |
| Discharge temperature range | -20~65°C | |
| Maximum continuous charge current | 50A | |
| Maximum continuous discharge current | 100A | |
| Color | Black /White | |
| Dimension (mm) | 710x300x600 | 710x300x800 |
| Weight | 81Kg | 110Kg |
| Installation method | Floor type with wheels | |
| Inverter Parameters | ||
| Rated power | 3.2KW | |
| Peak power | 5KW | |
| Output wave form | Pure sine wave | |
| Input/Output AC voltage | AC 110V/220V | |
| Input/Output AC voltage frequency | 50Hz/60Hz | |
All in One Energy Storage System Connection Diagram
Our service
1. OEM&ODM Service
2. Custom print logo
3. Free battery solution
4. Free Shipping cost to China address
5. Support sample order for test
Company Information
We are a technological innovation company, mainly engaged in R&D and sales of lithium battery and battery pack technology, focusing on the R&D and manufacturing of new energy storage products.
In the beginning of the company establishment in 2005, we occupied 40% market share in Guangdong Province with single-chip programming charging solution, and won exclusive orders from Wal-Mart, after 16 years continuously development, now the company has industry-leading lithium battery PACK R&D experience and manufacturing equipment, and a professional technical team provides one-stop service of new energy battery products for domestic and foreign customers regarding the industry needs.
