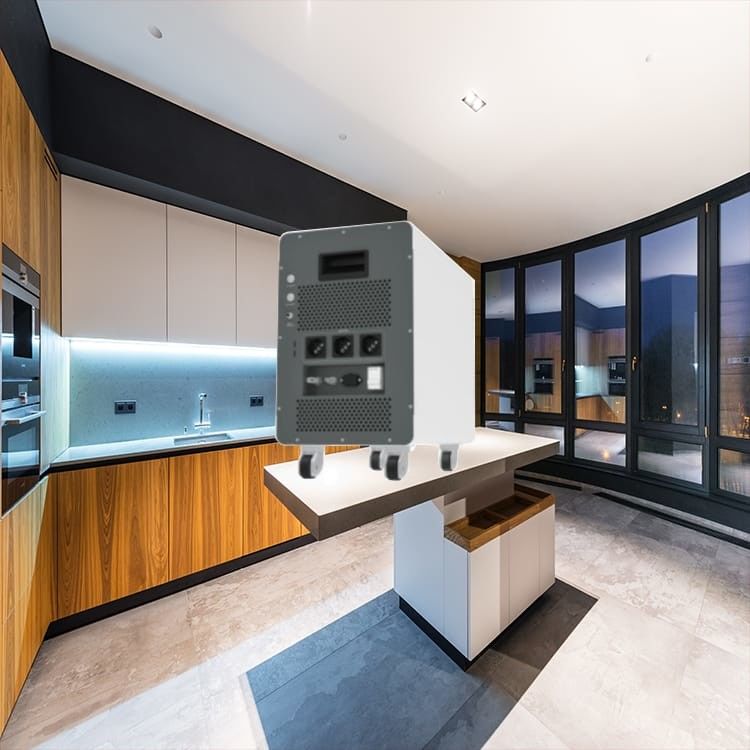

Residential All In One Lithium Battery With 5kw Inverter 100Ah 200Ah

Residential All In One Lithium Battery With 5kw Inverter 100Ah 200Ah

Residential All In One Lithium Battery

5kw All In One Lithium Battery

200Ah All In One Lithium Battery

Place of Origin:


Brand Name:



UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:


Contact Us

Request A Quote
Product Details
DC Voltage:
100Ah 200Ah
5.0kwh 10.0kwh
Battery Type:
LiFePO4 Cell
Life Time:
>6000 Cycles
Max Charge Current:
Max Discharge Current:
Inverter Rated Power:
Peak Power:
Output Wave Form:
Pure Sine Wave
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pcs per month
Contact Us
Product Description

All-In-One Lithium Battery System LiFePO4 Battery Pack Solar Li-Ion Batteries With 5kw Inverter For Residential


All In One Energy Storage System Feature


1. Integrated MPPT charge controller.
2. Equalization charging function.
3. Maximum PV input voltage up to 450VDC.
4. Support parallel operation for capacity expansion up to 80kW.
5. Flexibly schedule the Inverter charging and discharging time.
6. Configurable grid or solar input priority.
7. Optional WIFI/ GPRS remote monitoring.




All in One Energy Storage System Specification


Battery Parameters
Model 51.2V100Ah 51.2V200Ah
Nominal voltage 51.2V
Nominal capacity (kwh) 5KWh 10KWh
Cell type LiFePO4
Cycle life >6000 Cycles(80%DOD)
Charge temperature range 0~65°C
Discharge temperature range -20~65°C
Maximum continuous charge current 50A
Maximum continuous discharge current 100A
Color Black /White
Dimension (mm) 710x300x600 710x300x800
Weight 81Kg 110Kg
Installation method Floor type with wheels
Inverter Parameters
Rated power 3.2KW
Peak power 5KW
Output wave form Pure sine wave
Input/Output AC voltage AC 110V/220V
Input/Output AC voltage frequency 50Hz/60Hz


All in One Energy Storage System Connection Diagram


Residential All In One Lithium Battery With 5kw Inverter 100Ah 200Ah 0




1. What is your MOQ (Minimum Order Quantity)?
Sample order for testing is available. You can choose to place just one piece for testing.

2. What is the warranty term of your product?
Xwell standard warranty term is 3 years. Besides, warranty is extending available according to customers' requirements.

3. What about the lead time of bulk order?
It depends on the order quantity. Normally, the lead time is around 30 days.

4. What shipping method can I choose? How about the shipping time?
Our sales person will recommend the most suitable solution to you according to your detailed order and situation.

5. What is the payment term of the order?
T/T 30% as deposit, T/T 70% before shipment, other payment terms can be discussed according to the order quantity.
