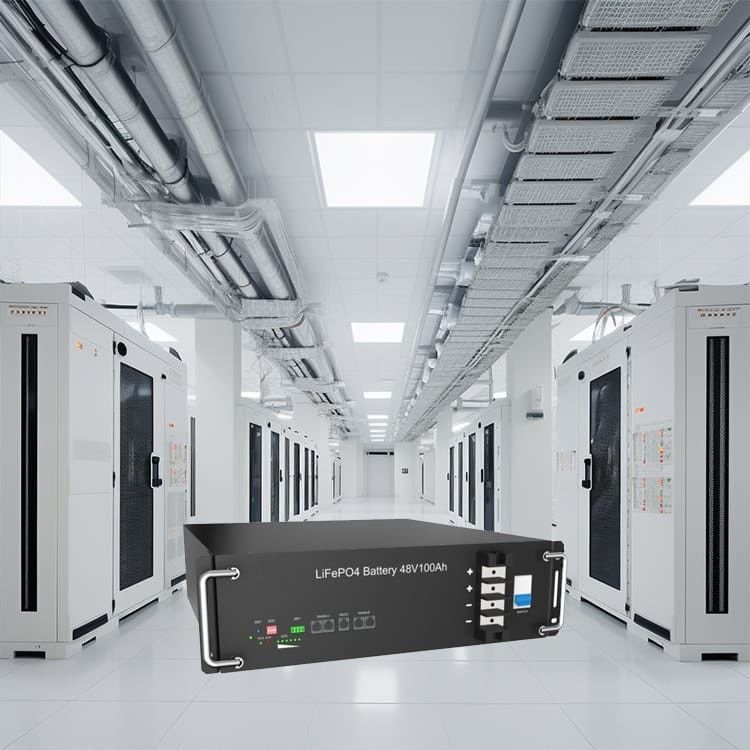

Rackmount LiFePO4 Battery Power System 51.2V 100ah 200ah Lithium Ion Battery Pack
It' s long life character, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflects the real requirements of end users and strongest technical capability of Xwell's.Widely used in microgrid energy storage, photovoltaic energy storage, computer data ROM stand-by power, UPS and etc.
Features
1. A Grade lithium iron phosphate battery cell inside, superior safety,2000+heavy duty deep cycles lifetime.
2. Built-in smart BMS automatic protection for over-charge, over discharge, over current and over temperature.
3. Internal cell balancing.
4. Lighter weight and compact size: About 30% ~40% of the weight of a comparable lead acid battery.
5. IP65 waterproof.
6. Easy installation
7. Wider temperature range:-20℃~60℃.
Rackmount Lithium Battery Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | ||
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 | ||
| Standard charge voltage | 54.6V(adjustable) | ||
| Max charge current | 50A | ||
| Discharge cut-off voltage | 42.5V(adjustable) | ||
| Max discharge current | 50A | ||
| Display | LCD(Optional) | ||
| Communication interface | CAN/RS485/RS232 | ||
| Cycle life | >6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~45°C | ||
| Discharge temperature range | -20~60°C | ||
| Color | Black | ||
| Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount | ||
Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery
Size of Rackmount Lithium Battery
Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
