Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-5120W-1
Contact Us

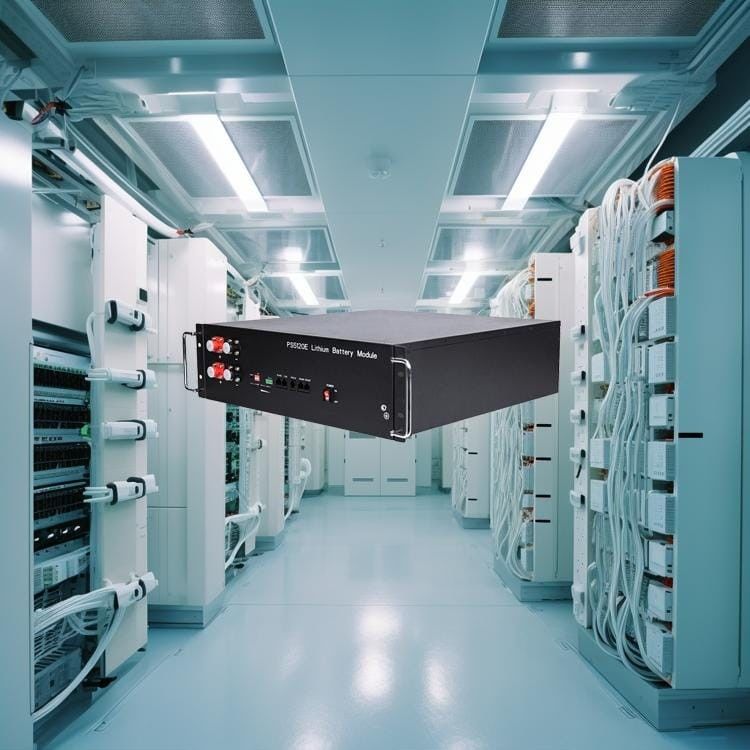

5kwh 51.2V 48V 100ah Rackmount Ess Solution Lithium Ion Backup Solar LiFePO4 Battery
Rackmount Lithium Battery Key Feature
1. Home Energy Storage System
2. Up-grade Cells
3. 16 Sets Batteries Can Be Connected In Parallel To Enlarge Capacity
4. Advanced BMS Multiple Protection
5. 51.2v Low-Voltage (Avaliable For 48v System)
6. Multiple Communication Interfaces: Rs485, Can
7. Safety Certification: CE, Un38.3 etc.
8. 3 Years Warranty
9. 7 * 24 Hours Engineer Online Support
Rackmount Lithium Battery Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | ||
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 | ||
| Standard charge voltage | 54.6V(adjustable) | ||
| Max charge current | 50A | ||
| Discharge cut-off voltage | 42.5V(adjustable) | ||
| Max discharge current | 50A | ||
| Display | LCD(Optional) | ||
| Communication interface | CAN/RS485/RS232 | ||
| Cycle life | >6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~45°C | ||
| Discharge temperature range | -20~60°C | ||
| Color | Black | ||
| Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount | ||
Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery
Size of Rackmount Lithium Battery
Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
About XWELL
Xwell located in Guangzhou, is a high-tech photovoltaic enterprise integrating R & D, production and sales.
Holding the concept of "Focusing on quality, technology upgrading, customers' demand and professional service" Amensolar has become the strategic partner with many famous solar energy companies in the world.
Xwell's main products include solar photovoltaic energy storage inverters, energy storage battery systems, etc, and Amensolar provides the services of system design, project construction and maintenance, and third-party operation and maintenance.
