Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-5120W-1
Document:
Contact Us

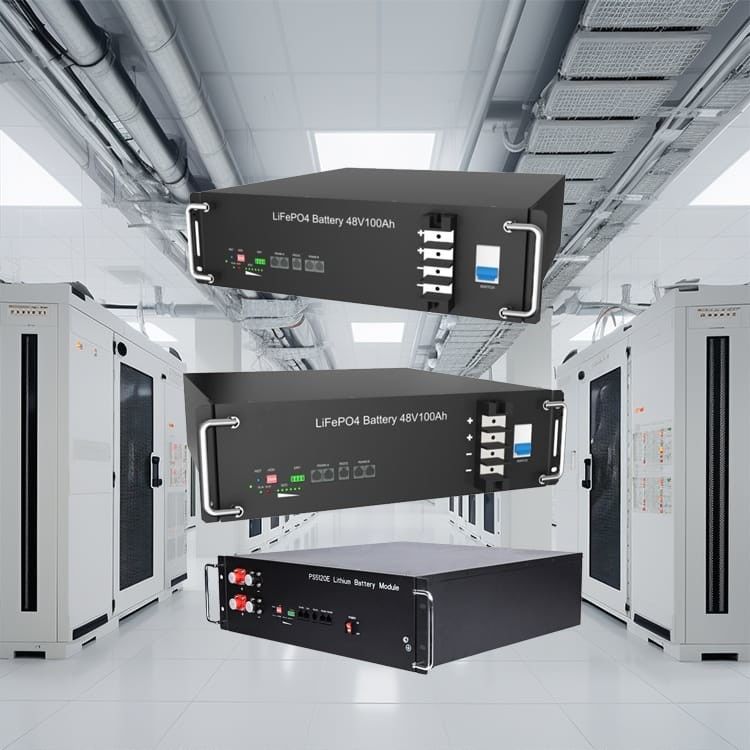

Rackmount Energy Storage Battery Pack Lithium Server 5kwh 48V Rackmount Energy Storage Battery
Product Characteristics
1. Compatible, Compatible with Tier 1 inverter brands
2. Safety, Multi-protection from self developed BMS
3. Easy to Scale Up, Be workable to be parallel based on 48V
4. Easy installation, Compact Size and Module design help for quick installation
5. Long Life, Span 15-20 years Life design. Up to 6000 + Cycle llfe
6. OEM Supported, Low MOQ for OEM order. Built your own brand
Rackmount Lithium Battery Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | ||
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 | ||
| Standard charge voltage | 54.6V(adjustable) | ||
| Max charge current | 50A | ||
| Discharge cut-off voltage | 42.5V(adjustable) | ||
| Max discharge current | 50A | ||
| Display | LCD(Optional) | ||
| Communication interface | CAN/RS485/RS232 | ||
| Cycle life | >6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~45°C | ||
| Discharge temperature range | -20~60°C | ||
| Color | Black | ||
| Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount | ||
Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery
Size of Rackmount Lithium Battery
Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
Delivery time
3-5 days for sample order, 7-15 days for bulk order
Payment
For bulk orders, 30% TT as deposit and 70% TT before delivery of goods,
Package
Custom solution knocked down packing for different design.
Loading port: Guangzhou/Shenzhen China
