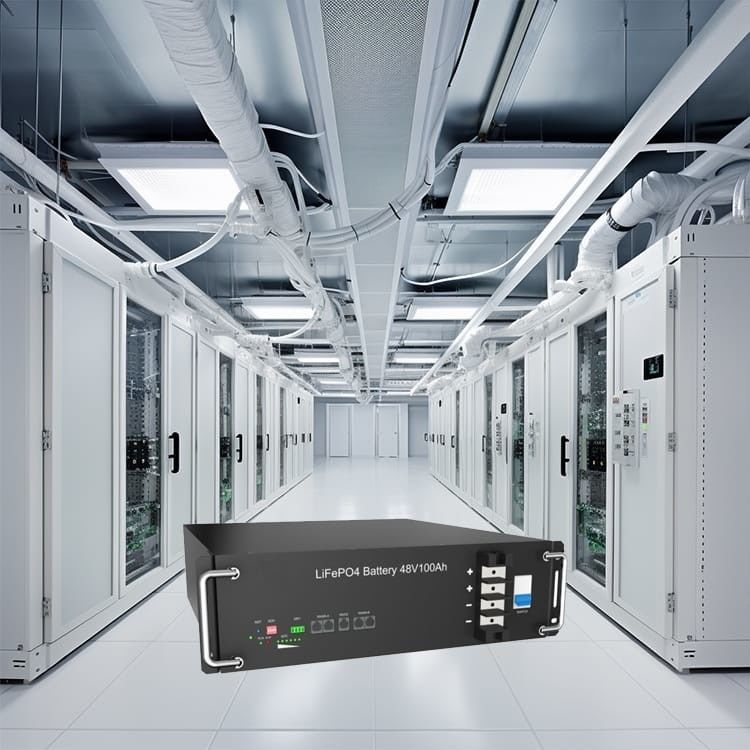

Rackmounted Lithium LFP Battery 2KWH 5KWH 10KWH Solar ESS For Commercial Industrial Use
Rackmount Lithium Battery Structure and Characteristics
1. 48v 100ah 5kwh Lithium Battery Pack Lifepo4 Rackmount Case With 5000 Cycle 5 Years Warranty
2. 51.2v 100ah Ltium ion Battey Features:
3. Cycle life >6000 times, upto 10 years
4. Expandable, battery design, parallel stacking to increase battery capacity CAN
5. Communication ports 232, Rs485, support with many inverters
6. Simple connection between battery and inverter, easy installation.
Rackmount Lithium Battery Features
1. Rack Mounted Lithium battery has LCD screen,convenient setting buttons
2. APP Monitor on your smartphones,and cables & accessories ready for installation
3. To welcome the world cooperation we accept OEM with your logo design
Rackmount Lithium Battery Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | ||
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 | ||
| Standard charge voltage | 54.6V(adjustable) | ||
| Max charge current | 50A | ||
| Discharge cut-off voltage | 42.5V(adjustable) | ||
| Max discharge current | 50A | ||
| Display | LCD(Optional) | ||
| Communication interface | CAN/RS485/RS232 | ||
| Cycle life | >6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~45°C | ||
| Discharge temperature range | -20~60°C | ||
| Color | Black | ||
| Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount | ||
Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery
Size of Rackmount Lithium Battery
Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
Why choose us?
We production of battery products are widely used in communications, power, financial systems, uninterruptible power supply systems (UPS), power plant and substation switch control, solar panels, controllers inverter etc solar systems, emergency lighting, alarm systems, cars, ships, motorcycles, electric bicycles and other industries. Sales network covers all provinces, municipalities, autonomous regions and established offices in various places and after-sales service center.
Our team with Yuasa ,BYD battery senior consultant,High quality technical management team, advanced production and testing equipment to ensure the quality of the battery is reliable.
