Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-5120W-1
Document:
Contact Us

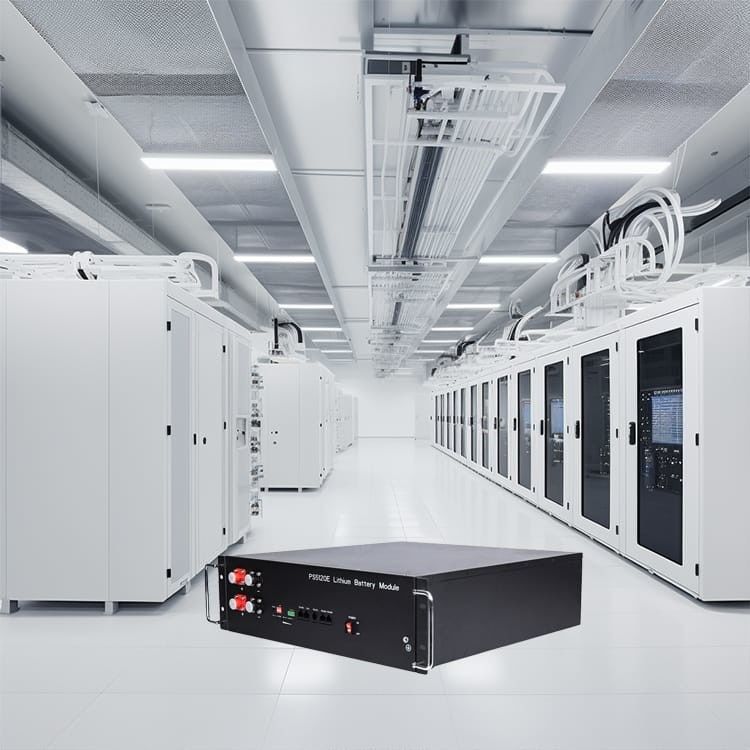

Rackmount Lithium Battery Lifepo4 Pack Ready To Ship 48V 50Ah 100Ah 150Ah 200Ah
Rackmount Lithium BatteryProduct Description
1. Long service life: product cycle times: 100% DOD 6000 times
2. The product has high safety, built-in temperature probe, safety alarm extinguisher, double protection function,
3. BMS has the function of active equalization.
4. It is intelligent and can detect voltage and electric quantity to avoid overcharge and overdischarge.
5. All brands of inverter communication can be connected
Good Quality -- ISO9001:2019 Standard
37 production processes and 7 steps quality check to promise stable quality for you. Xwell has very strictly quality control system includind incoming materials control, in-process quality control and outgoing quality control.
We do 100% full quality check and aging test to ensure product quality.
Rackmount Lithium Battery Specification
Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
Nominal voltage | 51.2V | ||
Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
Cell type | LiFePO4 | ||
Standard charge voltage | 54.6V(adjustable) | ||
Max charge current | 50A | ||
Discharge cut-off voltage | 42.5V(adjustable) | ||
Max discharge current | 50A | ||
Display | LCD(Optional) | ||
Communication interface | CAN/RS485/RS232 | ||
Cycle life | >6000 Cycles (80%DOD) | ||
Charge temperature range | 0~45°C | ||
Discharge temperature range | -20~60°C | ||
Color | Black | ||
Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
Weight | About 35Kg | About 42Kg | About 84Kg |
Installation method | Rack Mount |
Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery
Size of Rackmount Lithium Battery
Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
Why choose us?
We production of battery products are widely used in communications, power, financial systems, uninterruptible power supply systems (UPS), power plant and substation switch control, solar panels, controllers inverter etc solar systems, emergency lighting, alarm systems, cars, ships, motorcycles, electric bicycles and other industries. Sales network covers all provinces, municipalities, autonomous regions and established offices in various places and after-sales service center.
Our team with Yuasa ,BYD battery senior consultant,High quality technical management team, advanced production and testing equipment to ensure the quality of the battery is reliable.
Send your inquiry directly to us
