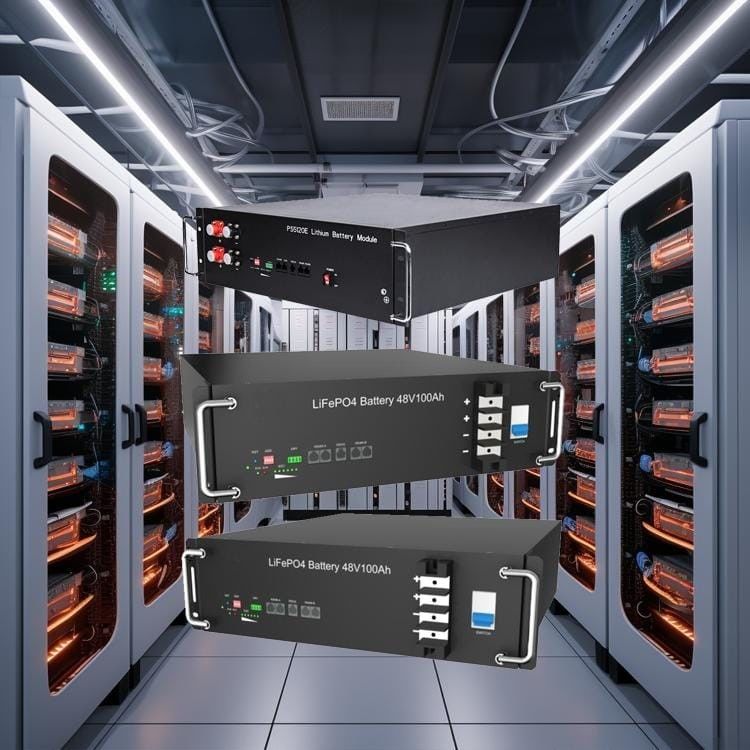

51.2V 200Ah Lifepo4 Lithium Batteries Residential Commercial Energy Storage Solar 5U Rackmount Lithium Battery LCD
Features of Rackmount Lithium Battery
1. Choice Monitor Digital Display
2. Battery is with digital display which allow users to monitor voltage of each serial of cells, battery’s rated voltage and capacity, temperatures and BMS parameters etc.
3. Support max. 6 parallels
4. If without master control, it support max. 6 parallels for highest 30.72Kwh battery system; If with standard master controls, it can be paralleled and serialed with more batteries.
Advantages of Rackmount Lithium Battery
1. FAST: Strict quality inspection system, quality assurance
2. STRONG TEAM: Own technical construction team, more efficient management
3. ALL OF QUALIFICATION: We have various construction service qualification, qualification certification complete
4. EXCELLENT SERVICE: 7*24 hours 400 customer service line, always protect your rightsand interests
Rackmount Lithium Battery Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | ||
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 | ||
| Standard charge voltage | 54.6V(adjustable) | ||
| Max charge current | 50A | ||
| Discharge cut-off voltage | 42.5V(adjustable) | ||
| Max discharge current | 50A | ||
| Display | LCD(Optional) | ||
| Communication interface | CAN/RS485/RS232 | ||
| Cycle life | >6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~45°C | ||
| Discharge temperature range | -20~60°C | ||
| Color | Black | ||
| Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount | ||
Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery
Size of ESS Lithium Battery
Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
FAQ
1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 20 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service
A: 24-hour technical support by phone, email or skype
5. Q: What is your lead time?
A: Spot goods usually take 3-5 days, and customization takes 5-7 days
