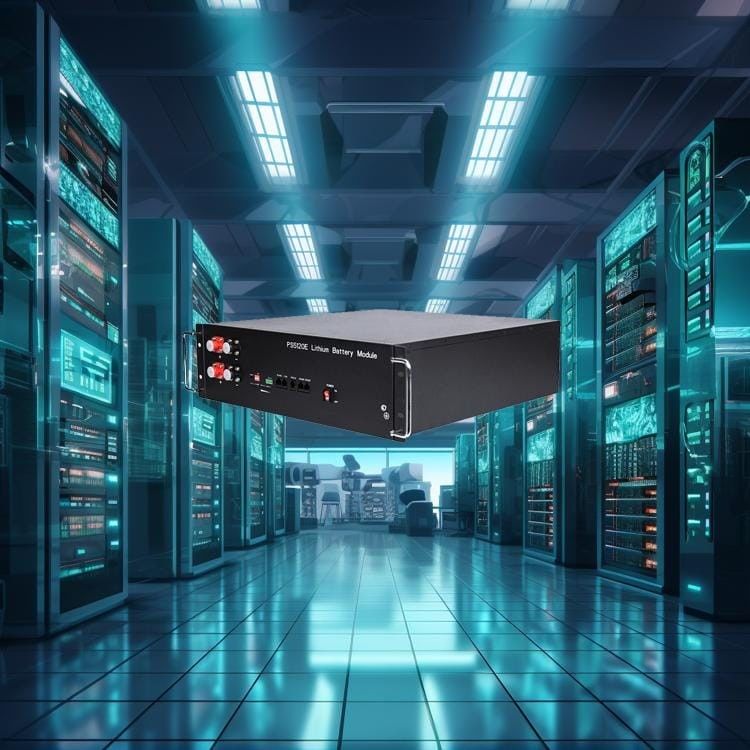

Reliable 6000 Deep Cycle Rechargeable 51.2v 50Ah 100Ah 200Ah Lithium Ion Rackmount Lithium Battery Pack Lifepo4 5kwh
Features of Rackmount Lithium Battery
1. Household Energy Storage Battery
2. LiFePO4 battery, Safe, Longer lifespan.
3. Modular design, Easy to stack.
4. Larger energy capacity.
5. Wide temperature range of -20~55C
6. Modular rack design for easier installation and smaller landscape
7. Real-Time Monitoring RS232/485/CAN communication port
8. Safe & Reliable LiFePO4 Cells,Smart BMS Management
9. Day Night 24/7 Uninterrupted Power Supply
10. Easy installation PLUG & PLAY Convenient and flexible
11. House Made Smart BMS Patented Technology
Description of Rackmount Lithium Battery
Intelligent anti-theft solution achieved via software lock, buzzer alarm, gyroscopeand GPS, the last two of which are optional.
Operating temperature ranges from -20℃ to 55℃. In cold area with temperature less than 0℃, the battery supports low temperature heating (optional).Expandability: a maximum of 16 batteries can be parallel-connected.
Compact Design: 19 inch rack, 3.0U height volume energy density((VED)2160 Wh/L
Safety performance: state-of-the-art LFP cell and reliable BMS design.
Industrial And Commercial Energy Storage System Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V | ||
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 | ||
| Standard charge voltage | 54.6V(adjustable) | ||
| Max charge current | 50A | ||
| Discharge cut-off voltage | 42.5V(adjustable) | ||
| Max discharge current | 50A | ||
| Display | LCD(Optional) | ||
| Communication interface | CAN/RS485/RS232 | ||
| Cycle life | >6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~45°C | ||
| Discharge temperature range | -20~60°C | ||
| Color | Black | ||
| Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount | ||
Cell Specification of ESS Lithium Battery
Operation Pannel of ESS Lithium Battery
Size of ESS Lithium Battery
Structure of ESS Lithium Battery
Application of ESS Lithium Battery
FAQ
1. Q: Are you a manufacturer?
A: Yes, we have been offering specialized products in this field for 20 years.
2. Q: How do you pack these products?
A: Usually packed according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, according to your requirements.
4. Q: After-sales service
A: 24-hour technical support by phone, email or skype
5. Q: What is your lead time?
A: Spot goods usually take 3-5 days, and customization takes 5-7 days
