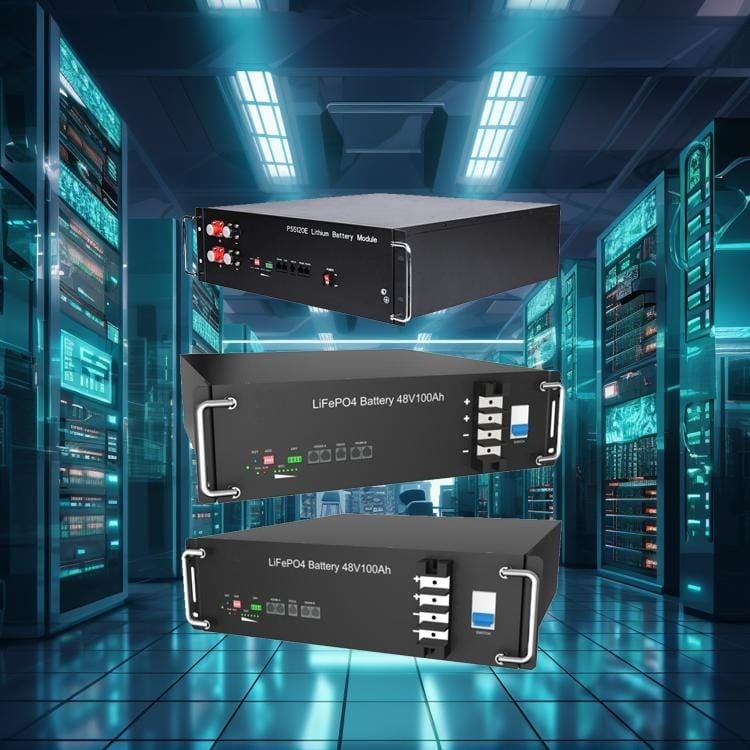

51.2V 2.56Kwh 5.12Kwh 10.24Kwh Packs Backup Energy Storage Lifepo4 Rack Mount Lithium Ion Batteries Solar Battery
ESS Lithium Battery
By storing energy during the day and meeting the needs of household appliances at night, we can save your electricity costs and save energy and environmental protection;
As an emergency backup power source for households, providing power support in case of power outages or other emergency situations.
Supporting parallel connection of multiple batteries
When your home has a high demand for electricity, we support up to 15 batteries in parallel to provide you with sufficient power support and solve your electricity problems.
When several batteries are stacked together, we will provide you with bracket products to ensure the safe and beautiful use of the product.
Features of ESS Lithium Battery
Monitor Digital Display
Battery is with digital display which allow users to monitor voltage of each serial of cells, battery’s rated voltage and
capacity, temperatures and BMS parameters etc.
If without master control, it support max. 15 parallels for highest 153.60Kwh battery system; If with standard master controls, it
can be paralleled and serialed with more batteries.
Industrial And Commercial Energy Storage System Specification
Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
Nominal voltage | 51.2V | ||
Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
Cell type | LiFePO4 | ||
Standard charge voltage | 54.6V(adjustable) | ||
Max charge current | 50A | ||
Discharge cut-off voltage | 42.5V(adjustable) | ||
Max discharge current | 50A | ||
Display | LCD(Optional) | ||
Communication interface | CAN/RS485/RS232 | ||
Cycle life | >6000 Cycles (80%DOD) | ||
Charge temperature range | 0~45°C | ||
Discharge temperature range | -20~60°C | ||
Color | Black | ||
Dimension (mm) | 442x410x133 3U |
442x410x177 4U |
550x442x220 5U |
Weight | About 35Kg | About 42Kg | About 84Kg |
Installation method | Rack Mount |
Cell Specification of ESS Lithium Battery
Operation Pannel of ESS Lithium Battery
Size of ESS Lithium Battery
Structure of ESS Lithium Battery
Application of ESS Lithium Battery
