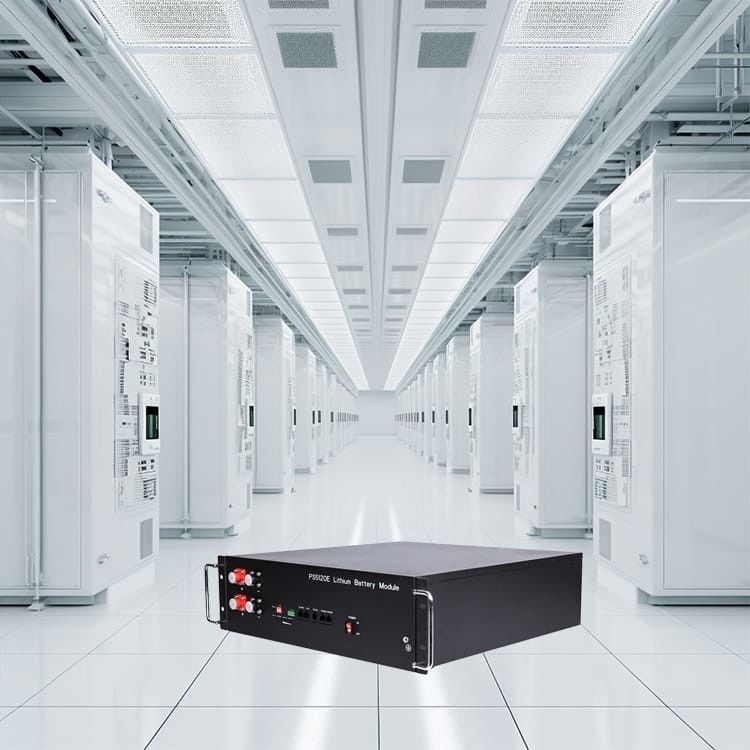

Rack Mount ESS Lithium Battery , Lifepo4 Solar Battery For Commercial Industrial

Rack Mount ESS Lithium Battery , Lifepo4 Solar Battery For Commercial Industrial

Rack Mount ESS Lithium Battery

Solar ESS Lithium Battery

Commercial Lifepo4 Solar Battery

Place of Origin:

China

Brand Name:

XWELL

Certification:

UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:

XW-2560W-1

Contact Us

Request A Quote
Product Details
Charge Voltage:
51.2V
Charge Capacity:
5.12kwh
Cell:
LiFePO4 Battery
Max Discharge Current:
50A
Standard Charge Voltage:
54.6V
Max Charge Current:
50A
Discharge Cut-off Voltage:
42.5V
Display:
LCD Optional
Communication Interface:
RS485, RS232, CAN
Cycle Life:
>6000 Cycles(80%DOD)
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Carton
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pcs per month
RELATED PRODUCTS
Contact Us
Product Description

10.24Kwh 51.2V 200Ah Rackmounted Lithium LFP Battery Solar ESS Lithium Battery for Commercial Industrial Use



Advantages of ESS Lithium Battery


1. Assemblly freely in series or parallel
2. High energy efficiency:Energy efficiency(charge and discharge)>97%
3. High Rate Charge & Discharge:Nominal 0.6C, Max 0.8C
4. More Safety:Dual hardware & Triple software protection
5. Safe and Reliable BMS:Relay design instead of mosfet
6. Long Life:Reliable LFP cells,Cycle life >6000 cycles
7. High Reliability:Key devices(Relay,Fuse) approved by CE and TUV
8. More Smart:With digital monitor system App with WIFI
9. Smart Design & Easy installation:Plug in & off
10. More Quiet: Without fan,more quiet and reduce the fan failure risk



Features of ESS Lithium Battery



Monitor Digital Display
Battery is with digital display which allow users to monitor voltage of each serial of cells, battery’s rated voltage and
capacity, temperatures and BMS parameters etc.

If without master control, it support max. 15 parallels for highest 153.60Kwh battery system; If with standard master controls, it
can be paralleled and serialed with more batteries.





Industrial And Commercial Energy Storage System Specification



Model 51.2V50Ah 51.2V100Ah 51.2V200Ah
Nominal voltage 51.2V
Nominal capacity (kwh) 2.56 5.12 10.24
Cell type LiFePO4
Standard charge voltage 54.6V(adjustable)
Max charge current 50A
Discharge cut-off voltage 42.5V(adjustable)
Max discharge current 50A
Display LCD(Optional)
Communication interface CAN/RS485/RS232
Cycle life >6000 Cycles (80%DOD)
Charge temperature range 0~45°C
Discharge temperature range -20~60°C
Color Black
Dimension (mm) 442x410x133
3U
442x410x177
4U
550x442x220
5U
Weight About 35Kg About 42Kg About 84Kg
Installation method Rack Mount



Cell Specification of ESS Lithium Battery



Rack Mount ESS Lithium Battery , Lifepo4 Solar Battery For Commercial Industrial 0



Operation Pannel of ESS Lithium Battery



Rack Mount ESS Lithium Battery , Lifepo4 Solar Battery For Commercial Industrial 1

Size of ESS Lithium Battery



Rack Mount ESS Lithium Battery , Lifepo4 Solar Battery For Commercial Industrial 2



Structure of ESS Lithium Battery



Rack Mount ESS Lithium Battery , Lifepo4 Solar Battery For Commercial Industrial 3



Application of ESS Lithium Battery



Rack Mount ESS Lithium Battery , Lifepo4 Solar Battery For Commercial Industrial 4
