Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-HL1536
Document:
Contact Us

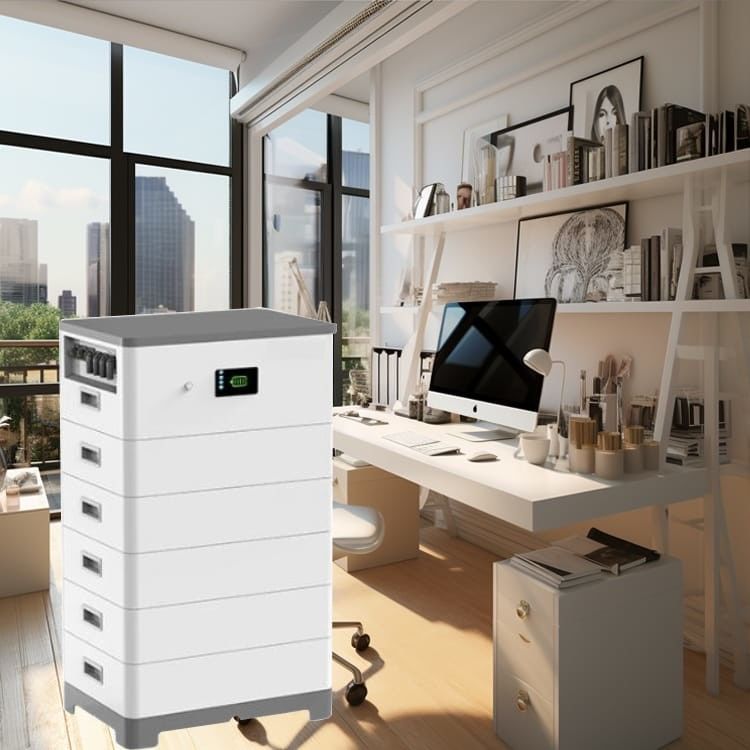

3 Module Parallel 15.36kwh 48V High Efficiency Lithium Battery Stackable Modular Residential Energy Storage System
Description of Residential Battery Storage System
HL Series offers flexible energy options for single/three phase, hybrid/ac-coupled, and battery-ready solutions for different scenarios, which adopts Cobalt free LiFePO4 chemistry, together with multiple level protection from BMS and inverters to ensure itsextreme safety and reliability, excellent performance and a long lifespan.lt features a modular stacked design and is light weight for one-person installation to save time and cost.
Features of Residential Battery Storage System
1. Flexible capacity options, 5.12kWh to 30.72kWh
2. Excellent safety of cobalt free LiFePO4 battery
3. Easy installation with modular and stacked design
4. Remote firmware upgrade
ESS Lithium Battery Specification
| Model | 1 Module | 2 Modules | 3 Modules | 4 Modules | 5 Modules | 6 Modules |
| Nominal capacity(kwh) | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 |
| Operating voltage | 48V | |||||
| Weight (Kg) | 96.5 | 151.5 | 206.5 | 261.5 | 316.5 | 371.5 |
| Nominal voltage | 48V | |||||
| Dimension (mm) | 600x460x457 | 600x460x637 | 600x460x817 | 600x460x997 | 600x460x1177 | 600x460x1357 |
| Battery cell type | LiFePO4 | |||||
| Communication method | CAN/RS485/RS232 | |||||
| Operating temperature range | Charging: 0~45℃ Discharging: -10~50℃ | |||||
| Protection level | IP55 | |||||
| Installation method | Floor installation | |||||
| Cycle life | >6000 Cycles(80%DOD) | |||||
| Peak charge/discharge current (@25℃ ,5S) | 100A | |||||
| Self-discharge rate | ≤3.5%/month/@25°C | |||||
| Parallel function | 1S~6S | |||||
ESS Lithium Battery Connection Diagram
FAQ
1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.
2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Same capacity matched
3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.
4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD
5.What's the warranty of your 48V/51.2V battery pack?
5 years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs
6.Do your batteries support series or parallel connection?
Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff
