Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-HL512
Document:
Contact Us

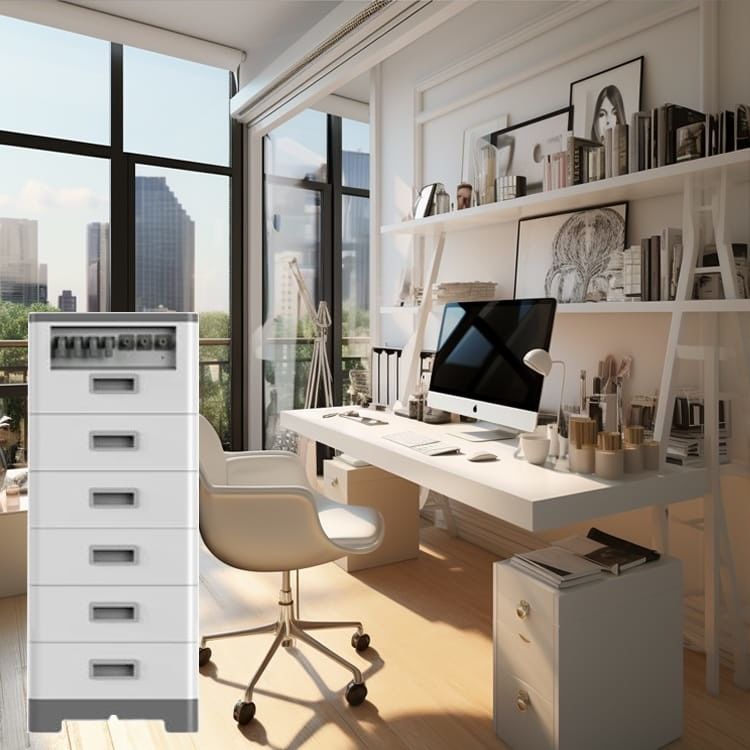

1 Module Parallel 25.60kwh 48V Residential ESS Solution Home Energy Storage System Stackable LiFePO4 Battery System
Features of Residential Battery Storage System
1. Grade A Cells
Using high quality lithium iron phosphate battery as the main body of energy storage, with feature of large capacity, light weight and large power.
2. Flexible configuration
Multiple battery modules can be stacked for expanding output and Capacity.
3. Status In Real Time
LED lights display the parameters of the equipment in real time, and the running status is clear at a glance.
4. High Capacity
The maximum capacity of a single cluster is 5.12kWh, and it supports 6 clusters in parallel.
5. Good Compatibility
With CAN and RS485, compatible with most popular hybrid and off-grid inverters in the market.
Advantages of Residential Battery Storage System
1. High safety design - circuit breaker + fuse double short circuit protection; Insulation resistance detection and monitoring system leakage.
2. Advanced battery management system --- the highly integrated battery management system can realize seamless monitoring
3. Complete self inspection and operation status detection functions, combined with HMI display, make the system operation information clear at a glance.
4. Complete and reliable system control and protection strategies, comprehensively
guarantee battery safety, and escort to extend the life of battery packs .
5. Modular design, configurable and expandable---multiple energy storage units can be flexibly combined and expanded into a larger energy storage system
ESS Lithium Battery Specification
Model | 1 Module | 2 Modules | 3 Modules | 4 Modules | 5 Modules | 6 Modules |
Nominal capacity(kwh) | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 |
Operating voltage | 48V | |||||
Weight (Kg) | 96.5 | 151.5 | 206.5 | 261.5 | 316.5 | 371.5 |
Nominal voltage | 48V | |||||
Dimension (mm) | 600x460x457 | 600x460x637 | 600x460x817 | 600x460x997 | 600x460x1177 | 600x460x1357 |
Battery cell type | LiFePO4 | |||||
Communication method | CAN/RS485/RS232 | |||||
Operating temperature range | Charging: 0~45℃ Discharging: -10~50℃ | |||||
Protection level | IP55 | |||||
Installation method | Floor installation | |||||
Cycle life | >6000 Cycles(80%DOD) | |||||
Peak charge/discharge current (@25℃ ,5S) | 100A | |||||
Self-discharge rate | ≤3.5%/month/@25°C | |||||
Parallel function | 1S~6S |
ESS Lithium Battery Connection Diagram
FAQ
1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.
2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Same capacity matched
3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C~35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.
4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD
5.What's the warranty of your 48V/51.2V battery pack?
5 years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs
6.Do your batteries support series or parallel connection?
Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff
