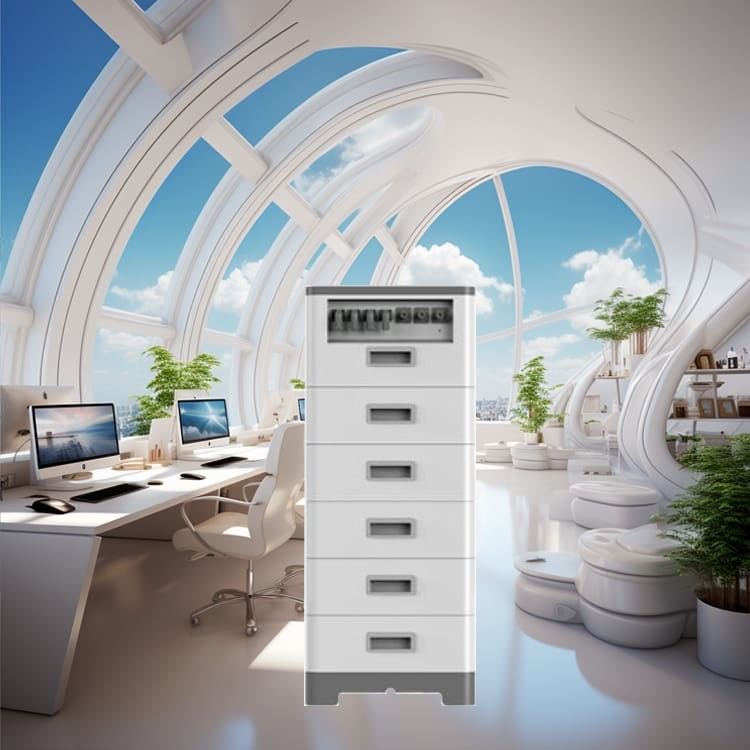

Lithium Ion Energy Storage Battery Pack Stackable 2 Module 10.24kwh 48V

Lithium Ion Energy Storage Battery Pack Stackable 2 Module 10.24kwh 48V

Lithium Ion Energy Storage Battery Pack

Energy Storage Battery Pack Stackable

10.24kwh stackable battery pack

Place of Origin:


Brand Name:



UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:


Contact Us

Request A Quote
Product Details
Module Qty:
Nominal Capacity:
Battery Cell Arrangement:
Voltage Range:
Nominal Voltage:
Battery Cell Type:
Rated Working Current:
Communication AC110V/220V/50Hz/60Hzmethod:
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pcs per month
Contact Us
Product Description

2 Module 10.24kwh 48V ESS Large Energy Storage Battery Pack Off-Grid Solar System Lithium Ion Stackable Batteries


ESS Lithium Battery Description


Xwell HL series batterie is an lifetime solution for Large residential or small commercial and industrial applications. Match with powerful high voltage three phase inverters to integrate to a powerful system facilitate powerful energy backup and load management for optimized autonomy and reduced energy cost. Peak shaving that balances power demand and grid power imported, to effectively reduce extra grid demand. Dry contact in the inverter, external loads such as heat pumps can also be flexibly activated to optimize energy consumption.


ESS Lithium Battery Features


1. 25,000 Cycle Life
    Wise Energy LTO Battery gives the highest battery cycle life in the market. Your battery will be an investment adding value to your property.

2. Life time solution
    Wise Energy LTO Storage Battery provides an economically viable lifetime solution for your home or commercial energy 3. 3. 3. Storage.

    -40°C to 60°C
    Wide temperature tolerance gurantees our Battery will be operating in the most extreme climates.


ESS Lithium Battery Specification


Model 1 Module 2 Modules 3 Modules 4 Modules 5 Modules 6 Modules
Nominal capacity(kwh) 5.12 10.24 15.36 20.48 25.6 30.72
Operating voltage 48V
Weight (Kg) 96.5 151.5 206.5 261.5 316.5 371.5
Nominal voltage 48V
Dimension (mm) 600x460x457 600x460x637 600x460x817 600x460x997 600x460x1177 600x460x1357
Battery cell type LiFePO4
Communication method CAN/RS485/RS232
Operating temperature range Charging: 0~45℃ Discharging: -10~50℃
Protection level IP55
Installation method Floor installation
Cycle life >6000 Cycles(80%DOD)
Peak charge/discharge current (@25℃ ,5S) 100A
Self-discharge rate ≤3.5%/month/@25°C
Parallel function 1S~6S


ESS Lithium Battery Connection Diagram


Lithium Ion Energy Storage Battery Pack Stackable 2 Module 10.24kwh 48V 0




1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.


2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Same capacity matched


3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C~35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.


4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD


5.What's the warranty of your 48V/51.2V battery pack?
5 years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs


6.Do your batteries support series or parallel connection?
Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff


Lithium Ion Energy Storage Battery Pack Stackable 2 Module 10.24kwh 48V 1
