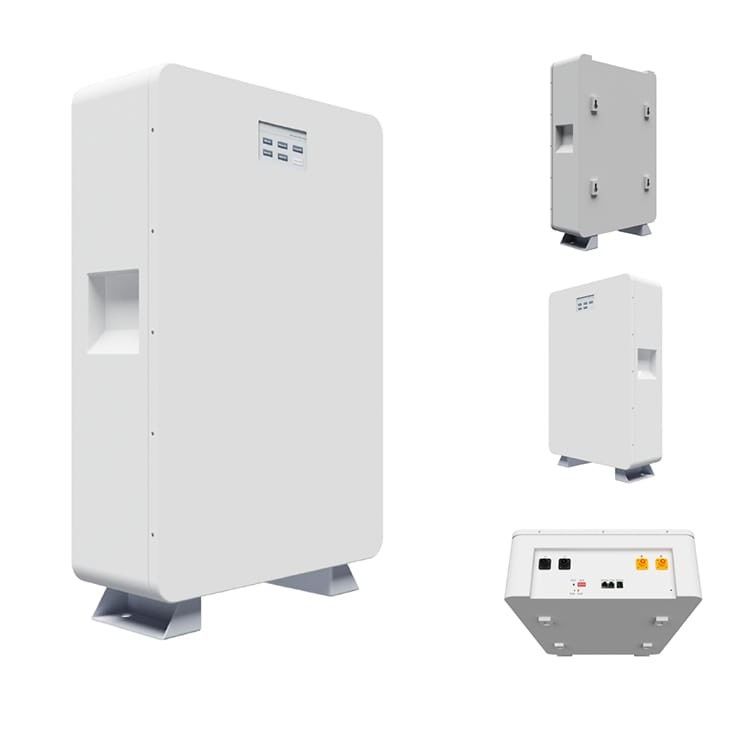

All In One Solar Energy Storage Battery System 2.56kwh With Mppt

All In One Solar Energy Storage Battery System 2.56kwh With Mppt

Solar Energy Storage Battery System 2.56kwh

Mppt Solar Energy Storage Battery System

Place of Origin:

China

Brand Name:

XWELL

Certification:

UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Model Number:

XW-2560W

Contact Us

Request A Quote
Product Details
Charge Capacity:
2.56kwh
Working Voltage:
51.2V
Battery Type:
LiFePO4
Full Charge Voltage:
58.4V
Max Charge Current:
40A
Discharge Cut-off Voltage:
40V
Max Discharge Current:
50A
Parallels Function:
Support 8 Units In Parallels
Communication Interface:
RS485, RS232, CAN
Cycle Life:
>6000 Cycles(80%DOD)
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Packaging Details
Carton
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 pcs per month
RELATED PRODUCTS
Contact Us
Product Description

All In One Solar Energy Storage Battery System 2.56kwh Commercial Solar Energy Battery Storage System With Mppt



Description of Solar Energy Storage Battery System



Working for the residential community,remote village andsmall-house and so on.
Providing stable electricity power by renewable energy from PV.
When the utility is abnormal, the BSS runs in off-grid/on grid modeand provides stable power for load.

The inverter has a variety o fworking modes. Whether it is used for main power supply in the area without electricity orback up power supply in the area with unstable power to deal with sudden powerfailure, the system can respond flexibly.





Application of Solar Energy Storage Battery System





1. Villa
2. Farm
3. Communic ation base station
4. Nomadic area
5. Household
6. Field power supply





Solar Panels


1. Solar panels are available

2. 30 years warranty

3. Highest quality with full certificates

4. Excellent mechanical load resistance

5. PID Resistant,High salt and ammonia resistance



Specification of Solar Energy Storage Battery System



Model 51.2V50Ah 51.2V100Ah 51.2V200Ah
Nominal capacity (kwh) 2.56 5.12 10.24
Nominal voltage 51.2V
Cell type LiFePO4
Standard charge voltage 58.4V (adjustable)
Max discharge current 40A 80A 120A
Discharge cut-of voltage 40V (adjustable)
Max discharge current 50A 100A 200A
Parallels Function Support 8 units in parallels
Communication interface RS485, RS232, CAN
Cycle life >6000 Cycles(80%DOD)
Charge temperature range 0~65°C
Discharge temperature range -20~65°C
Color white
Dimension(mm) 550x440x125 600x510x173 800x710x273
Weight 29kg 47kg 80kg
Installation method Wallmounted/Floor type



All In One Solar Energy Storage Battery System 2.56kwh With Mppt 0

All In One Solar Energy Storage Battery System 2.56kwh With Mppt 1



Home Energy Storage System Operation Pannel



All In One Solar Energy Storage Battery System 2.56kwh With Mppt 2



Home Energy Storage System Size



All In One Solar Energy Storage Battery System 2.56kwh With Mppt 3



Home Energy Storage System Single Battery Pack Wiring Diagram



All In One Solar Energy Storage Battery System 2.56kwh With Mppt 4



Home Energy Storage System Parallels Connection Wiring Diagram



All In One Solar Energy Storage Battery System 2.56kwh With Mppt 5
