Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-10240W-1
Document:
Contact Us

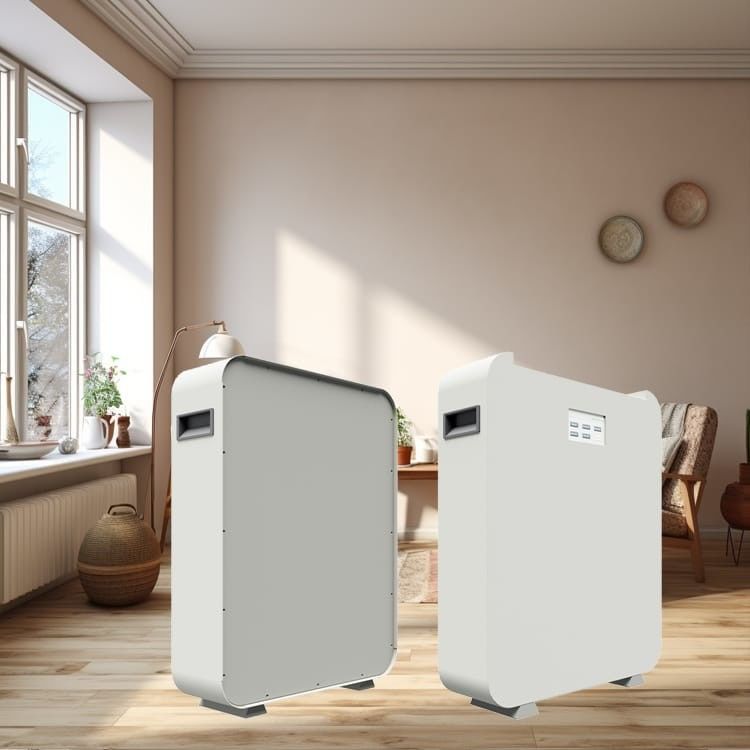

10.24kwh xwell 51.2V BMS LifePo4 Solar 200Ah Wall Mounted Lifepo4 Battery Power Station
Backup Power Protection
User has already installed xwell energy system at home,energy storage system can work as homepower backup directly, you can DlY quickly instead of waiting for qualified electrician.
No need communication with xwell inverter you already installed, no need any change for the existing xwell energy system.
Expandable capacity
1. flexible configuration, modular design, effortless
2. high power
3. high safety lifepo4 battery
4. multiple application, on-grid, off-grid, backup power
5. long lifespan, over 10 yearslifecycle 6000+ times
Features of Wall Mounted Lifepo4 Battery
1. 24-hour clean energy supplying
2. 10 years designed lifespan
3. Flexible design, easy to scale up
4. Easy to wall mount
5. Compact size and space saving
Specification of Residential Battery Storage System
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Nominal voltage | 51.2V | ||
| Cell type | LiFePO4 | ||
| Standard charge voltage | 58.4V (adjustable) | ||
| Max discharge current | 40A | 80A | 120A |
| Discharge cut-of voltage | 40V (adjustable) | ||
| Max discharge current | 50A | 100A | 200A |
| Parallels Function | Support 8 units in parallels | ||
| Communication interface | RS485, RS232, CAN | ||
| Cycle life | >6000 Cycles(80%DOD) | ||
| Charge temperature range | 0~65°C | ||
| Discharge temperature range | -20~65°C | ||
| Color | white | ||
| Dimension(mm) | 550x440x125 | 600x510x173 | 800x710x273 |
| Weight | 29kg | 47kg | 80kg |
| Installation method | Wallmounted/Floor type | ||
Home Energy Storage System Operation Pannel
Home Energy Storage System Size
Home Energy Storage System Single Battery Pack Wiring Diagram
Home Energy Storage System Parallels Connection Wiring Diagram
