Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-600W-01
Contact Us

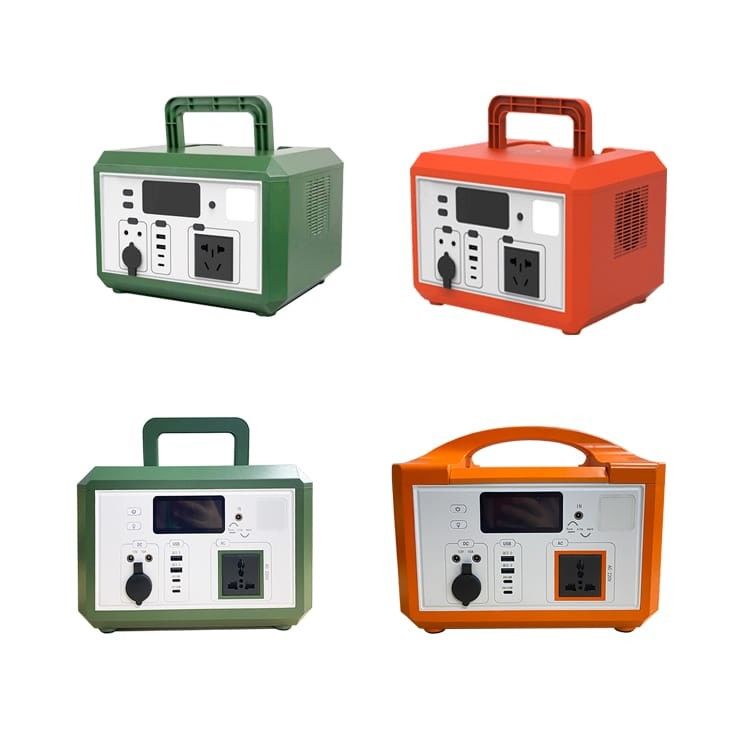

Camping Travel Lifepo4 Battery Pack Solar Generator Power System 600w Charger Portable Station
Features of Lifepo4 Battery Pack
1. LED display screen, show the eIectric quantity, voltage accurately
2. 6ooW High power output
3. Pure sine wave voltage stabilizer
4. PD 100W bidirectional fast charging
Advantages of Lifepo4 Battery Pack
1. New upgrade for Fast charging: lt will take 3 hours for charging the PD&DC in 3 hours
2. Solar power generation: Green Energy
3. Pure sine wave don't damage the electrical appliances
4. QuaIity Guaranteed, Long Endurance: Lithium Battery
5. LED Display Screen: Show the eIectric quantity, use convenient
Specification
| Category | Project | Specifications |
| INTPUT | DC input | DC5521 12-24V-5A |
| DC input | PD 100W | |
| AC OUT 220V | AC output voltage | 1 port, AC220V±5% |
| AC output power | 600W | |
| AC output over power protection | 650W Approximately | |
| AC output waveform | pure sine wave | |
| AC output peak | 1200W Peak maintenance time <50ms | |
| frequency | 50Hz | |
| USB output port | USB1 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W |
| USB2 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W | |
| TYPE-C1 output | PD / QC3.0 MAX 30W 12V/2.5A | |
| DC12V output | DC1 DC2 output | 12V / 10A MAX |
| TYPE-C output/input |
TYPE-C2 |
PD 100W output |
|
Batteries
|
type | LiFePO4 battery / 3400mAh |
| capacity | 23.8Ah (6S7P) | |
| power | 460Wh | |
| cycle life | 1000+ times | |
| Charging parameters | DC 12-24V / 5A | |
| charging time | 5 - 6H | Charge from 0% to 100% (automatic cut-off) |
| Full voltage | 21.9V ±0.1V | The voltage when the battery is charged to the automatic cut-off |
| LCD display | Display power;charging, stop charging status | Battery percentage and battery column display |
| DC, AC, inverter status | The display shows | |
| boot static | <10W | |
| Protective function | Short circuit, overload, over temperature, over voltage, over current, under voltage, etc. | |
| over temperature protection | over temperature protection | ≥85℃ |
| over temperature recovery | ≤70℃ |
Front pannel
Product accessories
Usage time for common devices
