Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
SUN-3.6/5K-SG03LP1-EU
Contact Us

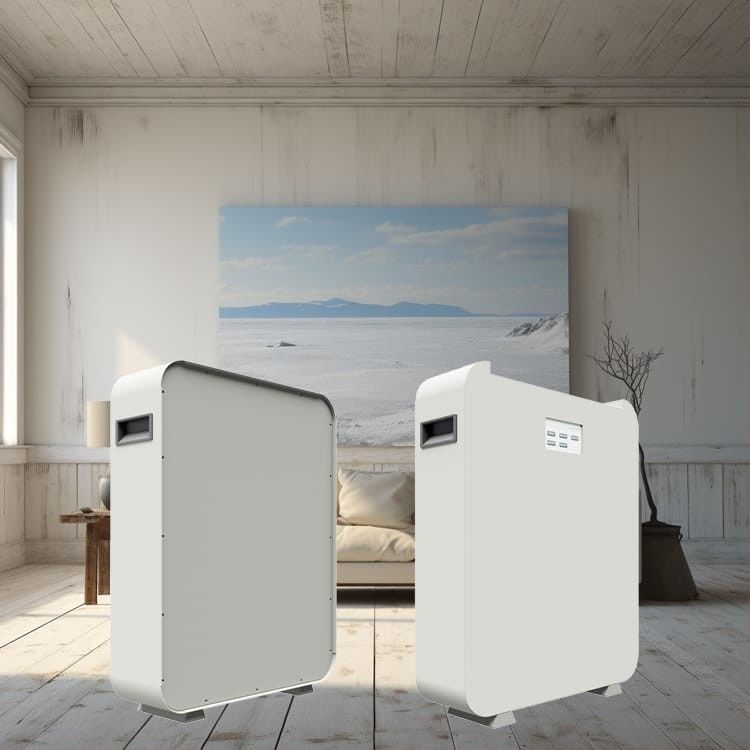

125V Energy Storage Hybrid Battery Battery Cell Configuration Hot Product Renewable Household With Bms
Inverter Description
This series of energy storage inverters is LiFePO4 battery use Grade A LiFePO4 Cells, with higher energy densitymore stable performance and greater power. Highest-level safety based on UL Testing Certificate for the cell insideFrom the source test to the packaging, every test is only to make the product better Our LiFePO4 battery has built-in BMS(Battery Management System) to protect it fromoverchargeover-discharge, over-current, and short circuit with excellent self-discharge rateBuilt-in high temp cut off prevents charging 45~60℃, >45℃ derating
Inverter Features
1. Standardization
Size standardization
Capacity standardization
.Voltage standardization
Current standardization
2. Globalization
High precision
.High performance
·High security
. High quality
3. Customization
-Analyze requirements
.Customize solutions
-Evaluation test
·Mass production
Inverter Specification
| Model | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU |
| Battery input data | ||
| Battery type | Lead-acid or Lithium-ion | |
| Battery voltage range(V) | 40~60 | |
| Max charging current(A) | 90 | 120 |
| Max discharging current(A) | 90 | 120 |
| External temperature sensor | Optional | |
| Charging curve | 3 stages/equalization | |
| Charging strategy for Li-Ion battery | Self-adaption to BMS | |
|
PV string input data
|
||
| Max DC input power(W) | 4680 | 6500 |
| PV input voltage(V) | 370 (125~500) | |
| Start-up voltage(V) | 125 | |
| MPPT range(V) | 150-425 | |
| Full load DC voltage range (V) | 300-425 | |
| PV input voltage(A) | 13+13 | |
| Max PV ISC(A) | 17+17 | |
| No. of strings per MPPT tracker | 2/1+1 | |
| AC output data | ||
| Rated AC output and UPS power(W) | 3600 | 5000 |
| Max AC output power (W) | 3690 | 5500 |
| AC output rated current(A) | 16.4/15.7 | 22.7/21.7 |
| Max AC current(A) | 18/17.2 | 25/23.9 |
| Max continuous AC passthrough(A) | 35 | |
| Peak power(off grid) | 2 times of rated power, 10s | |
| Power factor | 0.8 leading to 0.8 lagging | |
| Output frequency and voltage | 50/60Hz; 220/230 / 240Vac (single phase) | |
| Grid type | Singe phase | |
| Current harmonic distortion | THD<3% (linear load<1.5%) | |
| Grid DC component | <0.5%In | |
| Efficiency | ||
| Max efficiency | 97.60% | |
| Euro efficiency | 97.00% | |
| MPPT efficiency | 99.90% | |
| Protection | ||
| Integrated | Island protection, DC reverse polarity protection, insulation resistance detection, surge protection, leakage current monitoring protection, output overcurrent protection, output short circuit protection, output overvoltage protection | |
| General data | ||
| Certification and Licensing | CQC | |
| Operating temperature range (℃) | 45~60℃, >45℃ derating | |
| Cooling | Fan | |
| Noise(dB) | <30 dB | |
| BMS communication | RS485; CAN | |
| Weight(kg) | 20.5 | |
| Size | 580×330×208mm | |
| Protection degree | IP65 | |
| Installation type | Wall-mounted | |
| Warranty | 5 years | |
FAQ
Q: What is your MOQ?
A: There is no MOQ and we also support a sample service.
Q: How about the payment terms?
A: T/T, Paypal, Wire Transfer and Online Transfer are all acceptable.
Q: Is the battery kit equipped with BMS?
A: Yes, our battery kit comes complete with the BMS and all the accessories needed to assemble the battery pack. Customers can assemble their own battery packs if they have enough batteries.
Q: What options are available for the BMS that comes with the battery kit?
A: 100A/150A/200A BMS are availble for customers to choose.
Q: What are the advantages of your battery kits?
A: Our kits have the following advantages:
⭐Stackable
⭐External port can pass 250A current individually
⭐The internal BMS is compatible with CAN and RS485 communication and can communicate with a wide range of inverters without complex commissioning
⭐The PCB boards are soldered with the corresponding wires for the customer to assemble in order
⭐The external LCD display shows the basic parameters
⭐The side clamping plates apply pressure to the battery for better clamping
⭐Equipped with a weak switch for greater safety
⭐Complimentary 485 adapter cable for connection to the PC
Q: What is the shipping time limit for battery kit?
A:The transit time is approximately 35-38 business days.
Q: What should I do when I receive the battery kits?
A: First open the box when you sign for it to check that the contents have not been damaged in transit, and then double check that the battery kit is complete with all the accessories.
Q: Why has my logistics information not been updated?
A: The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
