Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-1000W-01
Document:
Contact Us

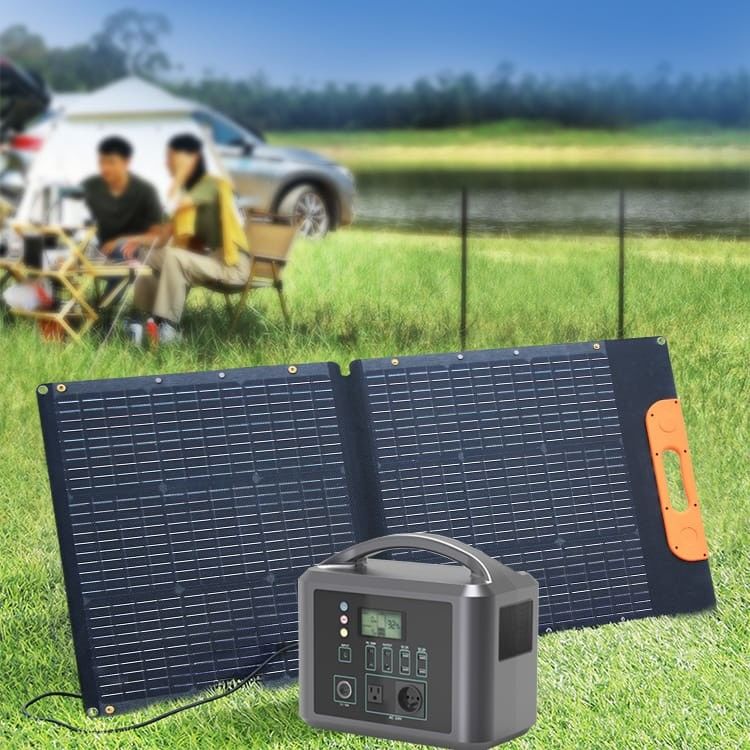

Portable Lithium Battery Power Station Supports External Solar Panels Home Outdoor Emergency Appliance
Many portable power stations come with built-in safety features, such as overcharge protection, short-circuit protection, and low-voltage protection. These features help to prevent damage to the power station and your devices.
The weight and size of a portable power station vary depending on the battery capacity and the number of outlets it has. Smaller power stations are more compact and easier to carry, while larger power stations have more outlets and higher battery capacity.
Features
1.Consider the size and weight of the battery if you plan to carry it around with you.
2.A smaller and lighter battery will be more portable, but it will also have a smaller capacity.
3.Look for batteries that have safety features such as overcharge protection, short circuit protection, and temperature protection.
4.Brand reputation and It is always a good idea to research the brand and read customer reviews before making a purchase.
Specification
| Category | Project | Specifications |
| INTPUT | DC input | DC5521 12-24V-5A |
| DC input | PD 120W | |
| AC OUT 220V | AC output voltage | 1 port, AC220V±5% |
| AC output power | 1000W | |
| AC output over power protection | 1000W Approximately | |
| AC output waveform | pure sine wave | |
| AC output peak | 1200W Peak maintenance time <50ms | |
| frequency | 50Hz/60Hz | |
| USB output port | USB1 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 18W |
| USB2 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 100W | |
| TYPE-C1 output | PD / QC3.0 MAX 30W 12V/2.5A | |
| DC12V output | DC1 DC2 output | 12V / 10A MAX |
| TYPE-C output/input |
TYPE-C2 |
PD 100W output |
|
Batteries
|
type | LiFePO4 battery / 3600mAh |
| capacity | 36Ah (8SP) | |
| power | 920Wh | |
| cycle life | 1000+ times | |
| Charging parameters | DC 12-24V / 5A | |
| charging time | 5 - 6H | Charge from 0% to 100% (automatic cut-off) |
| Full voltage | 21.9V ±0.1V | The voltage when the battery is charged to the automatic cut-off |
| LCD display | Display power;charging, stop charging status | Battery percentage and battery column display |
| DC, AC, inverter status | The display shows | |
| boot static | <10W | |
| Protective function | Short circuit, overload, over temperature, over voltage, over current, under voltage, etc. | |
| over temperature protection | over temperature protection | ≥85℃ |
| over temperature recovery | ≤70℃ |
