Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-600W-01
Document:
Contact Us

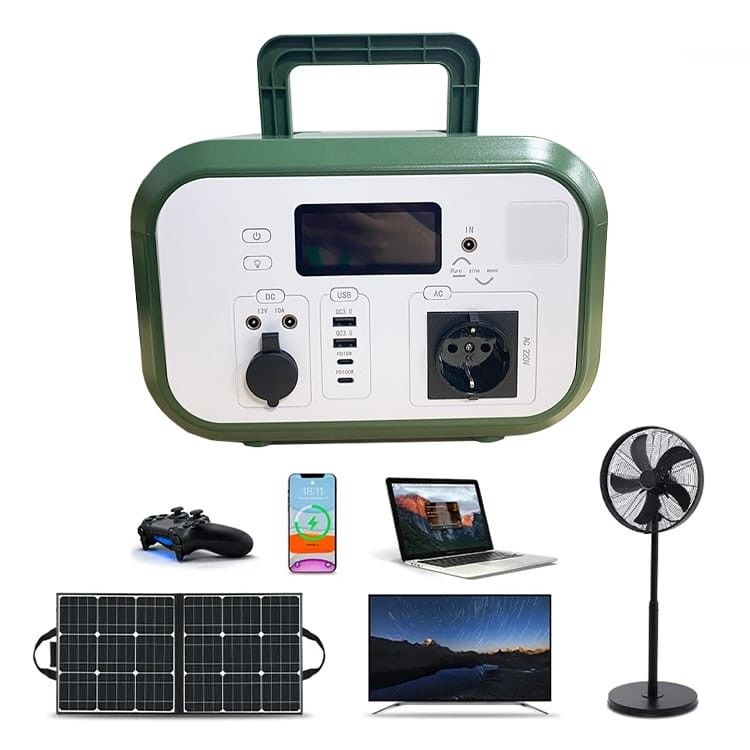

Portable Lithium Battery Power Station Lightweight Outdoor Energy Outdoors Solar Panel Charge Adapter
Output Waveform: The output waveform of a portable power station determines the quality of the AC output. Pure sine wave inverters provide a stable and clean output, while modified sine wave inverters may produce a buzzing sound and can cause issues with some devices.Portable power stations can be affected by extreme temperatures, both hot and cold. Look for a model that has a wide operating temperature range to ensure reliable performance in a variety of conditions.
Specification
| Category | Project | Specifications |
| INTPUT | DC input | DC5521 12-24V-5A |
| DC input | PD 100W | |
| AC OUT 220V | AC output voltage | 1 port, AC220V±5% |
| AC output power | 600W | |
| AC output over power protection | 650W Approximately | |
| AC output waveform | pure sine wave | |
| AC output peak | 1200W Peak maintenance time <50ms | |
| frequency | 50Hz | |
| USB output port | USB1 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W |
| USB2 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W | |
| TYPE-C1 output | PD / QC3.0 MAX 30W 12V/2.5A | |
| DC12V output | DC1 DC2 output | 12V / 10A MAX |
| TYPE-C output/input |
TYPE-C2 |
PD 100W output |
|
Batteries
|
type | LiFePO4 battery / 3400mAh |
| capacity | 23.8Ah (6S7P) | |
| power | 460Wh | |
| cycle life | 1000+ times | |
| Charging parameters | DC 12-24V / 5A | |
| charging time | 5 - 6H | Charge from 0% to 100% (automatic cut-off) |
| Full voltage | 21.9V ±0.1V | The voltage when the battery is charged to the automatic cut-off |
| LCD display | Display power;charging, stop charging status | Battery percentage and battery column display |
| DC, AC, inverter status | The display shows | |
| boot static | <10W | |
| Protective function | Short circuit, overload, over temperature, over voltage, over current, under voltage, etc. | |
| over temperature protection | over temperature protection | ≥85℃ |
| over temperature recovery | ≤70℃ |
Front pannel
Product accessories
Usage time for common devices
features
1.The depth of discharge (DoD) refers to the amount of battery capacity that is used before recharging.
2.Lithium-ion batteries typically have a higher DoD than lead-acid batteries, which means they can be discharged further without damaging the battery.
3.Battery Safety: Portable power station batteries can be dangerous if not handled properly. Look for a model that has built-in safety features like overcharge protection, short-circuit protection
4. low-voltage protection to prevent damage to the battery and your devices.
