Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-600W-01
Document:
Contact Us

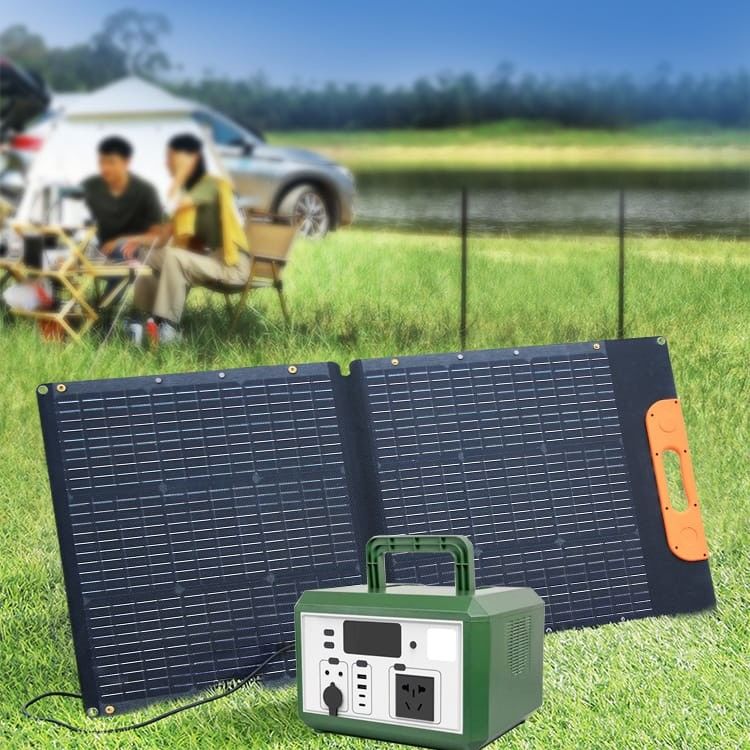

Portable Lithium Battery Power Station Environmental Friendly Outdoor Deep Cycle Output Solar Panel Charge
The inverter type of a portable power station determines the quality of the AC output. Pure sine wave inverters provide a stable and clean output, making them suitable for sensitive electronics like medical equipment and laptops. Modified sine wave inverters are less expensive and can power most electronic devices, but they may produce a buzzing sound and can cause issues with some devices.
Specification
Category | Project | Specifications |
INTPUT | DC input | DC5521 12-24V-5A |
DC input | PD 100W | |
AC OUT 220V | AC output voltage | 1 port, AC220V±5% |
AC output power | 600W | |
AC output over power protection | 650W Approximately | |
AC output waveform | pure sine wave | |
AC output peak | 1200W Peak maintenance time <50ms | |
frequency | 50Hz | |
USB output port | USB1 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W |
USB2 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W | |
TYPE-C1 output | PD / QC3.0 MAX 30W 12V/2.5A | |
DC12V output | DC1 DC2 output | 12V / 10A MAX |
TYPE-C output/input |
TYPE-C2 |
PD 100W output |
Batteries
|
type | LiFePO4 battery / 3400mAh |
capacity | 23.8Ah (6S7P) | |
power | 460Wh | |
cycle life | 1000+ times | |
Charging parameters | DC 12-24V / 5A | |
charging time | 5 - 6H | Charge from 0% to 100% (automatic cut-off) |
Full voltage | 21.9V ±0.1V | The voltage when the battery is charged to the automatic cut-off |
LCD display | Display power;charging, stop charging status | Battery percentage and battery column display |
DC, AC, inverter status | The display shows | |
boot static | <10W | |
Protective function | Short circuit, overload, over temperature, over voltage, over current, under voltage, etc. | |
over temperature protection | over temperature protection | ≥85℃ |
over temperature recovery | ≤70℃ |
Front pannel
Product accessories
Usage time for common devices
features
1.Battery Protection: Portable power stations can be subject to physical damage, such as drops or impacts, which can damage the battery. Look for a power station that has built-in battery protection features, like shock absorption or a protective casing, to prevent damage to the battery.
2.Battery Recycling: When it comes time to dispose of the battery, make sure to follow proper recycling procedures to ensure that it is disposed of safely and responsibly. Many manufacturers offer battery recycling programs, which can help reduce the environmental impact of these batteries.
