Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-600W-01
Document:
Contact Us

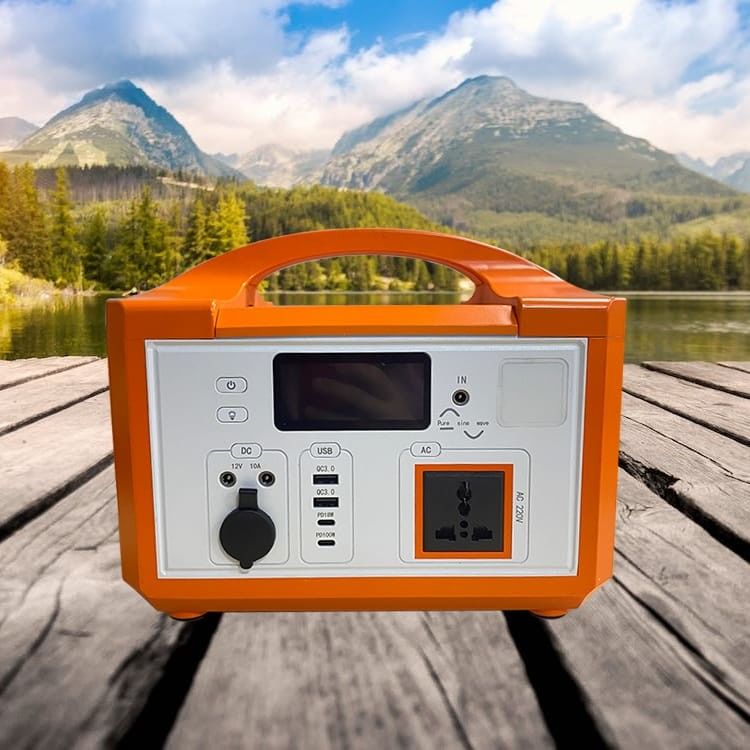

12V-24V/1-5A Portable Lithium Battery Power Station Pd Fast Charging Mobile Storage Container
portable power stations are a useful tool that can provide reliable power in a variety of situations. By choosing a power station with the right mix of features and capabilities, you can ensure that you always have access to the power you need, no matter where you are. Battery Chemistry: Portable power stations typically use lithium-ion batteries as they are lightweight, compact, and have high energy density. Lead-acid batteries are also used in some portable power stations, but they are heavier and less energy-dense than lithium-ion batteries.
Features
1.Accessories: Some portable power stations come with accessories like carrying cases, charging cables, and solar panels. Consider what accessories you may need and choose a model that includes them or that is compatible with the accessories you already have.
2.Output power: The output power of a portable power station determines what devices it can power. Make sure to choose a power station that has enough wattage to power all of the devices you plan to use.
3.Charge time: The charge time of a portable power station can vary depending on the battery capacity and the charging method. Consider how quickly you need to recharge your power station and choose a model with a fast charge time if necessary.
Specification
| Category | Project | Specifications |
| INTPUT | DC input | DC5521 12-24V-5A |
| DC input | PD 100W | |
| AC OUT 220V | AC output voltage | 1 port, AC220V±5% |
| AC output power | 600W | |
| AC output over power protection | 650W Approximately | |
| AC output waveform | pure sine wave | |
| AC output peak | 1200W Peak maintenance time <50ms | |
| frequency | 50Hz | |
| USB output port | USB1 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W |
| USB2 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W | |
| TYPE-C1 output | PD / QC3.0 MAX 30W 12V/2.5A | |
| DC12V output | DC1 DC2 output | 12V / 10A MAX |
| TYPE-C output/input |
TYPE-C2 |
PD 100W output |
|
Batteries
|
type | LiFePO4 battery / 3400mAh |
| capacity | 23.8Ah (6S7P) | |
| power | 460Wh | |
| cycle life | 1000+ times | |
| Charging parameters | DC 12-24V / 5A | |
| charging time | 5 - 6H | Charge from 0% to 100% (automatic cut-off) |
| Full voltage | 21.9V ±0.1V | The voltage when the battery is charged to the automatic cut-off |
| LCD display | Display power;charging, stop charging status | Battery percentage and battery column display |
| DC, AC, inverter status | The display shows | |
| boot static | <10W | |
| Protective function | Short circuit, overload, over temperature, over voltage, over current, under voltage, etc. | |
| over temperature protection | over temperature protection | ≥85℃ |
| over temperature recovery | ≤70℃ |
Front pannel
Product accessories
Usage time for common devices
