Place of Origin:
China
Brand Name:
XWELL
Certification:
UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE
Model Number:
XW-600W-01
Document:
Contact Us

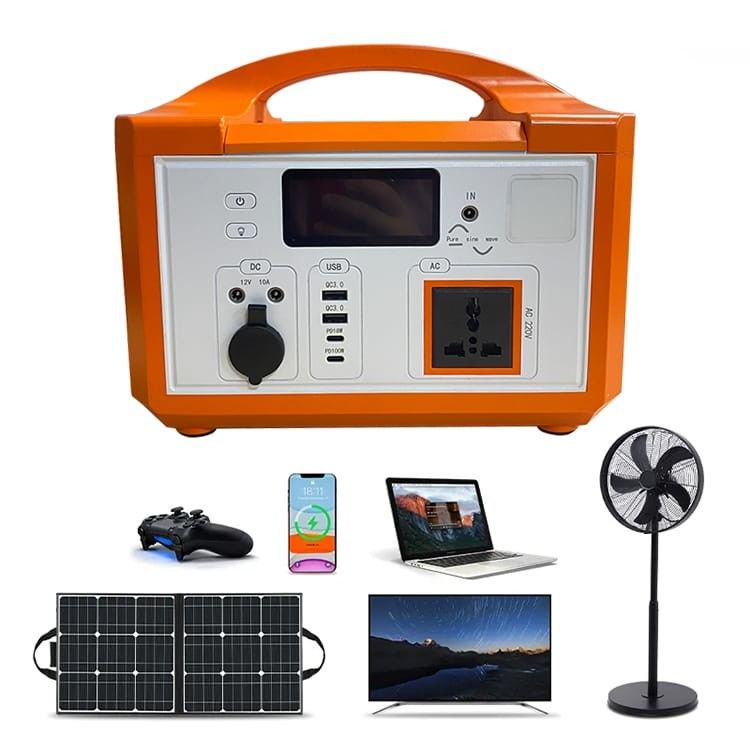

600w Portable Lithium Battery Power Station Home Use Outdoor Emergency High Brightness Led Lighting
Portable power stations come in a variety of sizes and battery capacities, ranging from small, pocket-sized models to larger, more powerful units. Some power stations even have the ability to expand their battery capacity by adding extra battery packs. Many portable power stations can be charged using a variety of methods, such as AC power, car adapters, and even solar panels. Some power stations can even be charged through hand-crank generators, making them a useful tool for emergency situations or off-grid adventures.
features:
1.Battery capacity: Portable power stations come with different battery capacities, typically measured in watt-hours (Wh) or amp-hours (Ah). The higher the capacity, the more energy the power station can store and the longer it can power your devices.
2.AC outlets: Most portable power stations come with one or more AC outlets that can be used to power devices that require a standard wall outlet, such as laptops, TVs, and small appliances.
3.DC outlets: In addition to AC outlets, many portable power stations also come with DC outlets, such as USB ports, 12V car sockets, and other specialized outlets that can power devices like cameras and drones.
Specification
Category | Project | Specifications |
INTPUT | DC input | DC5521 12-24V-5A |
DC input | PD 100W | |
AC OUT 220V | AC output voltage | 1 port, AC220V±5% |
AC output power | 600W | |
AC output over power protection | 650W Approximately | |
AC output waveform | pure sine wave | |
AC output peak | 1200W Peak maintenance time <50ms | |
frequency | 50Hz | |
USB output port | USB1 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W |
USB2 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W | |
TYPE-C1 output | PD / QC3.0 MAX 30W 12V/2.5A | |
DC12V output | DC1 DC2 output | 12V / 10A MAX |
TYPE-C output/input |
TYPE-C2 |
PD 100W output |
Batteries
|
type | LiFePO4 battery / 3400mAh |
capacity | 23.8Ah (6S7P) | |
power | 460Wh | |
cycle life | 1000+ times | |
Charging parameters | DC 12-24V / 5A | |
charging time | 5 - 6H | Charge from 0% to 100% (automatic cut-off) |
Full voltage | 21.9V ±0.1V | The voltage when the battery is charged to the automatic cut-off |
LCD display | Display power;charging, stop charging status | Battery percentage and battery column display |
DC, AC, inverter status | The display shows | |
boot static | <10W | |
Protective function | Short circuit, overload, over temperature, over voltage, over current, under voltage, etc. | |
over temperature protection | over temperature protection | ≥85℃ |
over temperature recovery | ≤70℃ |
Front pannel
Product accessories
Usage time for common devices
