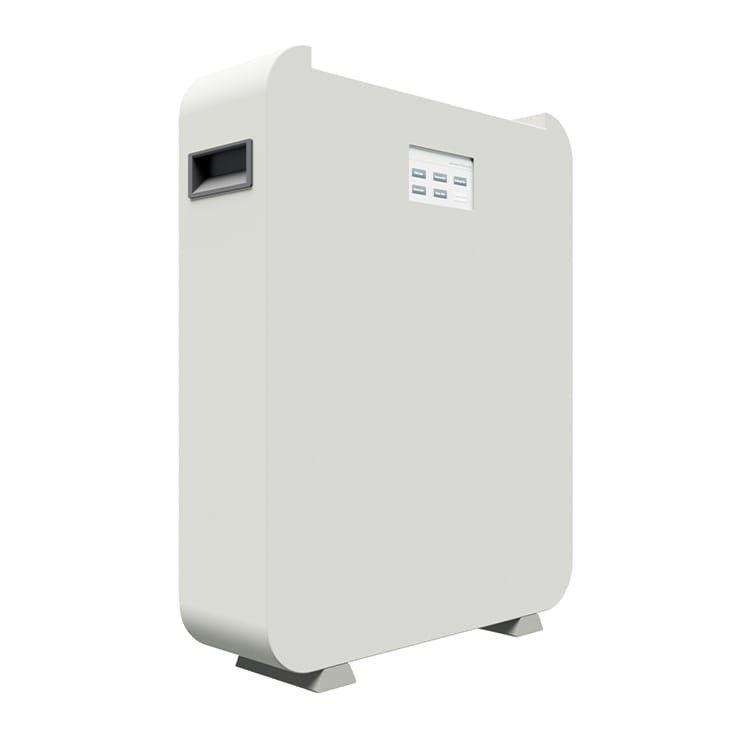

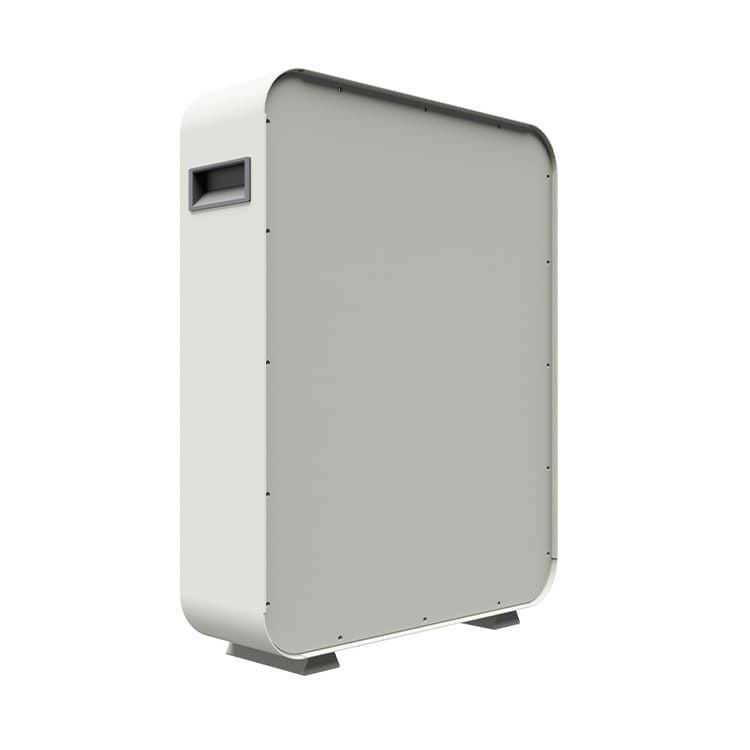

2560Wh 51.2V DC Home Energy Storage System Wall-Mounted And Floor-Standing LiFePO4 Battery
Home Energy Storage System Description
The Home Energy Storage System Series offers two installation options, wall-mounted and floor-standing, and battery capacities of 50Ah, 100Ah, and 200Ah to flexibly meet household energy needs. The series features A-grade lithium iron phosphate cells with a cycle life of over 3000 times, built-in BMS for safety protection, and supports RS485/RS232/CAN communication protocols. The system is compatible with various energy storage inverters on the market, catering to a diverse range of user needs.
Home Energy Storage System Specification
| No. | Item | General Parameter | Remark |
| 1 | Material system | Lithium iron phosphate | / |
| 2 | Typical Capacity | 50Ah | 0.5C Standard discharge |
| 3 | Operating voltage range | 2.5~3.65V | / |
| 4 | Nominal Voltage | 3.2V | Mean Operation Voltage |
| 5 | Standard Charge Voltage | 3.6V |
By standard charge method |
| 6 | Internal Impedance | ≤0.8mΩ | 1kHz；2%SOC |
| 7 | Dimension | Thickness: ≤37.5mm |
Initial Dimension |
| Width:135±1mm | |||
| Hight:192±1mm | |||
| 8 | Weight | ≤2.03 Kg | |
| 9 | Standard charge current | 0.5C | 0.5C constant current,3.65V constant voltage charge to 3.65V, continue charging till current decline to ≤0.05C |
| 10 |
Maximum Charging Current |
50 A | 25±2℃ |
| 11 | Standard discharge Current | 0.5C | 25±2℃ |
| 12 | Maximum discharge current | 50 A | 25±2℃ |
| 13 | Maximum Discharging Current | 100A(2C) | 25℃, 50%SOC, 30s |
Home Energy Storage System Operation Pannel
Home Energy Storage System Size
Home Energy Storage System Single Battery Pack Wiring Diagram
Home Energy Storage System Parallels Connection Wiring Diagram
FAQ
Q: What is your MOQ?
A: There is no MOQ and we also support a sample service.
Q: How about the payment terms?
A: T/T, Paypal, Wire Transfer and Online Transfer are all acceptable.
Q: Is the battery kit equipped with BMS?
A: Yes, our battery kit comes complete with the BMS and all the accessories needed to assemble the battery pack. Customers can assemble their own battery packs if they have enough batteries.
Q: What options are available for the BMS that comes with the battery kit?
A: 100A/150A/200A BMS are availble for customers to choose.
Q: What are the advantages of your battery kits?
A: Our kits have the following advantages:
⭐Stackable
⭐External port can pass 250A current individually
⭐The internal BMS is compatible with CAN and RS485 communication and can communicate with a wide range of inverters without complex commissioning
⭐The PCB boards are soldered with the corresponding wires for the customer to assemble in order
⭐The external LCD display shows the basic parameters
⭐The side clamping plates apply pressure to the battery for better clamping
⭐Equipped with a weak switch for greater safety
⭐Complimentary 485 adapter cable for connection to the PC
Q: What is the shipping time limit for battery kit?
A:The transit time is approximately 35-38 business days.
Q: What should I do when I receive the battery kits?
A: First open the box when you sign for it to check that the contents have not been damaged in transit, and then double check that the battery kit is complete with all the accessories.
Q: Why has my logistics information not been updated?
A: The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
