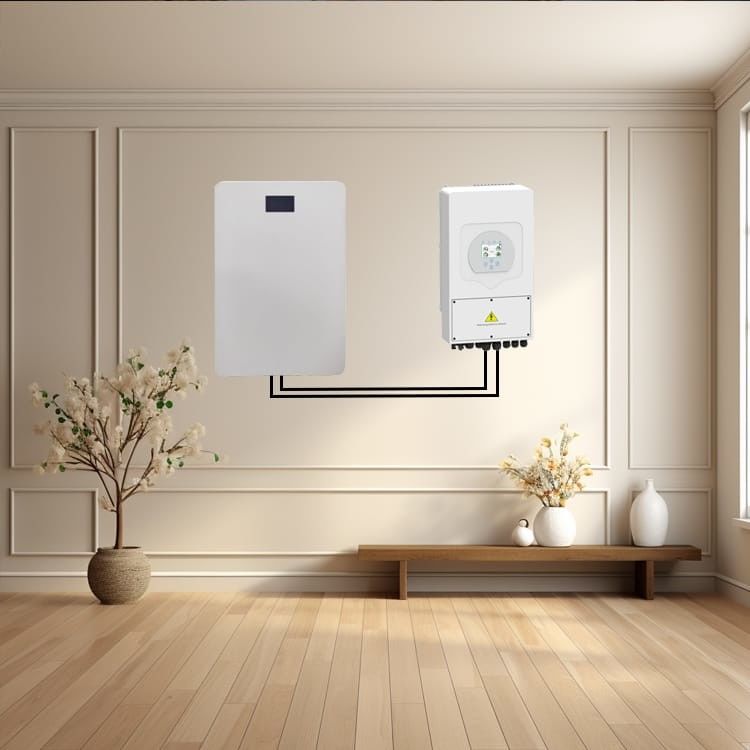

2.56kwh Wall Mounted Lithium Iron Phosphate Residential Battery Storage System For Home Solar System
Description of Residential Battery Storage System
1. Safe and reliable: Lithium iron phosphate batteries are highly safe, have a service life of up to ten years, and have high powerefhciency.
2. Environmentally friendly: Wall - mounted and landing installation is convenient, the product module is safe and pollution-free.
3. Technology Core: Equipped with high-quality battery cell; The high-end BMS control system provides the bestservice for system operationand grid response; Equipped with first-classdesign, bring stable andreliable operationto
the equipment
Features of Residential Battery Storage System
1. The case surface should be clean without obvious defor ation and no mechanical damage
2. Aluminum case is sandblasted and anodized
3. Interface contact no rust, screws correct fixed with no loose, and case bottom surface is flat;
4. The case color requires uniform color with no glitch
5. The connection between each part of the case should be installed tightly, gap in between of eachpart should not be more than 2mm
6. The inner wiring layout should be ne at and orderly
Specification of Residential Battery Storage System
| Model |
51.2V50Ah |
51.2V100Ah |
51.2V200Ah |
| Nominal capacity (kwh) |
2.56 |
5.12 |
10.24 |
| Nominal voltage |
51.2V |
| Cell type |
LiFePO4 |
| Standard charge voltage |
58.4V (adjustable) |
| Max discharge current |
40A |
80A |
120A |
| Discharge cut-of voltage |
40V (adjustable) |
| Max discharge current |
50A |
100A |
200A |
| Parallels Function |
Support 8 units in parallels |
| Communication interface |
RS485, RS232, CAN |
| Cycle life |
>6000 Cycles(80%DOD) |
| Charge temperature range |
0~65°C |
| Discharge temperature range |
-20~65°C |
| Color |
white |
| Dimension(mm) |
550x440x125 |
600x510x173 |
800x710x273 |
| Weight |
29kg |
47kg |
80kg |
| Installation method |
Wallmounted/Floor type |
Home Energy Storage System Operation Pannel
Home Energy Storage System Size
Home Energy Storage System Single Battery Pack Wiring Diagram
Home Energy Storage System Parallels Connection Wiring Diagram
FAQ
1. Q: How can you guarantee quality?
A: We have a perfect pre-sales service and after-sales service system. We will start to track the whole process from the factory production, and there will be a service specialist to provide you with exclusive service, so as to ensure that there is no problem in the entire order process.
2. Q: Do you provide samples?
A: Yes, sample orders are welcomed.
3. Q: Do you provide OEM&ODM service?
A: Yes, we provide OEM&ODM service for most of our products. Please contact our sales manager for details.
4. Q: What can you buy from us?
A: Solar Panel, BIPV, Solar cleaning robot, Battery, Portable power supply, and other solar energy products. If you have any needs, you can contact our sales managers. We will find the best solution for you.
5. Q: Are the products in stock?
A: For most products, we have inventory and will arrange delivery in time. For large orders, we will calculate the delivery time accordingly and communicate with you.
